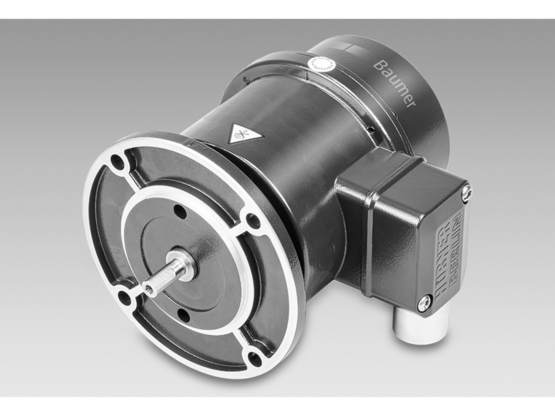

Baumer APY
Tachogenerators
- For direct replacement of "PY" or "BC" style tachogenerators
- Low response time
- Open circuit voltage 20…100 mV per rpm
- Very high resistance to shock
- High signal quality due to patented LongLife technology
- Recognition of sense of rotation possible via control
- CSA / C / US approved
- Optional: Second shaft end (B14)
| Reversal tolerance: | ≤0,1 % |
|---|---|
| Approval: | CE, CSA C/US |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Armature-circuit time-constant: | <75 µs |
| Climatic test: | Humid heat, constant (IEC 60068-2-3, Ca) |
| Calibration tolerance: | ±1 % |
| Isolation class: | B |
| Temperature coefficient: | ± 0,05 %/K (open-circuit) |
| Linearity tolerance: | ≤0,15 % |
| Admitted shaft load: | ≤60 N axial ≤80 N radial |
|---|---|
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Operating temperature: | -22...+266 °F |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10...2000 Hz IEC 60068-2-27 Shock 300 g, 1 ms |
| Weight approx.: | 2,4 kg |
| Rotor moment of inertia: | 1,1 kgcm² |
| Torque: | 1,5 Ncm |
| Operating speed: | ≤10000 rpm |
| Protection DIN EN 60529: | IP 55 |
| Flange: | Mounting flange |
| Shaft type: | .312" DIA / .318" DIA solid shaft |
| Size (flange): | 4.528" DIA |
| Connection: | Terminal box |
