Baumer Product Catalogue
All of the Baumer products we supply can be found in the Baumer catalogue which is downloadable here
Baumer Signal Processing
Baumer Relay modul DS 93 R
Signal Processing

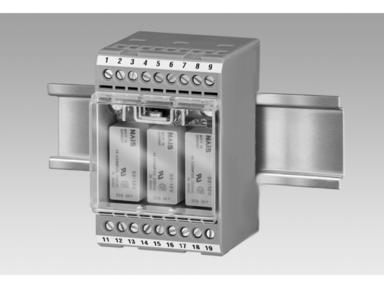

Baumer Relay modul ES 93 R
Signal Processing Switch relay box for switching high voltages and currents for the electrical speed switch ES(L) 93 Triggering is carried out by the transistor outputs of the ES(L) 93 The ES 93 R also conditions an externally supplied AC or DC low voltage

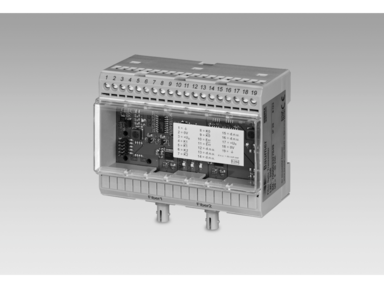

Baumer Fiber-optic receiver: LWL-EHR
Signal Processing Transmission length up to 1500 mReconversion of optical signals into electrical signals and generation of status signalsTransmission error detection via checksum (CRC)High-precision transmission of signals (Jitter

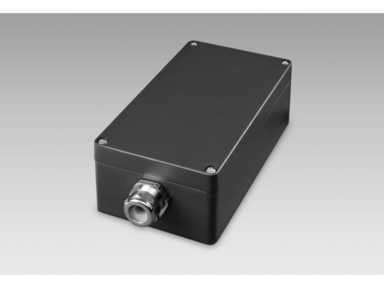

Baumer Fiber-optic transmitter in outdoor box: LWL-SBR
Signal Processing Transmission length up to 1500 mConverting standard square-wave signals into optical signalsTransmission error detection via checksum (CRC)High-precision transmission of signals (Jitter
Baumer Fiber-optic transmitter: LWL-SHR
Signal Processing Transmission length up to 1500 mConverting standard square-wave signals into optical signalsTransmission error detection via checksum (CRC)High-precision transmission of signals (Jitter

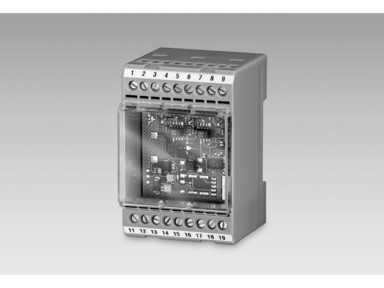

Baumer HEAG 151, 152, 153, 154
Signal Processing Signal level shifting from HTL → TTL or TTL → HTLIsolating signal cables to multiple receivers to avoid earth loopsRegenerating of signals when transmitting over long distance
Baumer HEAG 158
Signal Processing Converting of SinCos signals into TTL and HTL signalsAdditional interpolation of the signals (multiplying or dividing)Oversampling with 24 MHzDigitally pre-filterVery high output frequency possible
Baumer HEAG 159
Signal Processing Converting of SinCos signals into multiplied SinCos signalsMultiplying factor 1...128Offset and amplitude adjustmentOversampling with 24 MHzDigitally pre-filterHigh signal quality

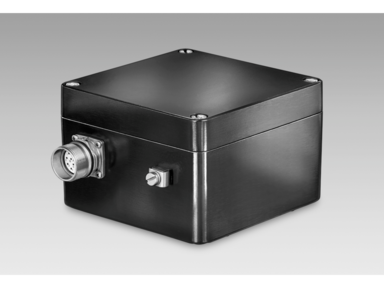

Baumer HEAG 160
Signal Processing Converting of SinCos signals into multiplied SinCos signalsAdditional interpolation of HTL or TTL signals (multiplying or dividing)Oversampling with 24 MHzDigitally pre-filterVery high output frequency possible

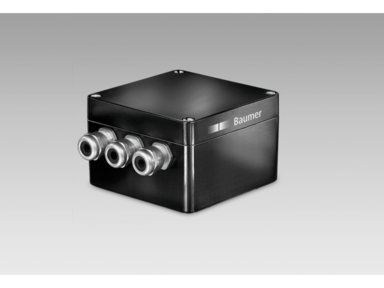

Baumer HEAG 171, HEAG 172
Signal Processing For high interference locationsConverting standard square-wave signals into fiber-optic signalsEach channel is coupled onto fiber-optic easy-to-fit plug3 different plug versions availableDelay time over a 100 m length of fiber-optic is 1 µsExcept of POF all fiber optic cable usabl ...

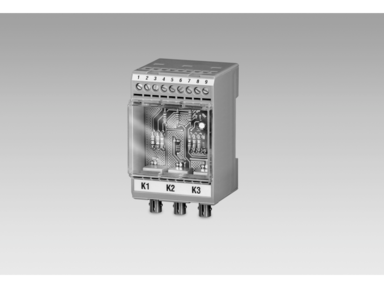

Baumer HEAG 173, HEAG 174
Signal Processing For high interference locationsEach channel is coupled onto fiber-optic easy-to-fit plugReconversion of optical to electrical signals in the receiver control cabinet3 different plug versions availableDelay time over a 100 m length of fiber-optic is 1 µsExcept of POF all fiber opti ...
Baumer HEAG 175, HEAG 176
Signal Processing For high interference locationsConverting standard square-wave signals into fiber-optic signalsEach channel is coupled onto fiber-optic easy-to-fit plug3 different plug versions availableDelay time over a 100 m length of fiber-optic is 1 µsExcept of POF all fiber optic cable usabl ...

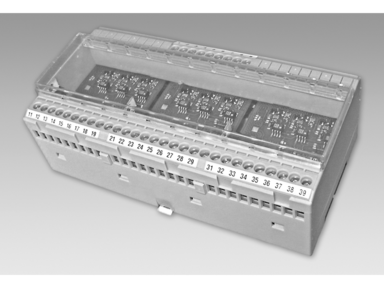

Baumer HEAG 150
Signal Processing Signal level shifting from HTL → TTL or TTL → HTLIsolating signal cables to multiple receivers to avoid earth loopsRegenerating of signals when transmitting over long distance1 input unit and 3 output units
