Baumer Rotary Encoders

Sine encoders For safety-relevant applications according SIL2Blind hollow shaft ø16 mm or cone shaft ø17 mm (1:10)Up to 5000 sinewaves cycles per turnLow harmonic content (patented LowHarmonics technology)Top-quality SinCos output-signalsProtection against inductive shaft currentLarge terminal box ...

Incremental encoders Size ø58 mmPrecise optical sensing (interpolated)Output signal level programmable (TTL or HTL)Blind hollow shaft, ø8…15 mmConnection axial, radial or tangentialPulses per revolution 1...65536, programmableHigh protection up to IP 67High resistance to shock and vibrations

Tachogenerators Tachogenerator / ATEXEx-approved by ATEX II 2 G Ex db eb IIC T6 GbLow response timeOpen circuit voltage 20…150 mV per rpmSolid shaft ø11 mmEURO flange B10High signal quality due to patented LongLife technologyRecognition of sense of rotation

Hall sensors cable FEP, 2 m-40 … 120 °C

Incremental encoders - combination Robust, compact housing Hybrid bearing for extended service life 3 switching outputs speed controlled (independent transistor outputs) Freely programmable on and off switching speed Programming via included software (RS485 interface) Output stage HTL or TTL

Speed switches Freely programmable on and off switching speed3 adjustable switching speedsActual speed indicatorSwitching points adjustable up to 20000 rpmSwitching points can be adjusted individually for both rotating directionsSuitable for rugged environment

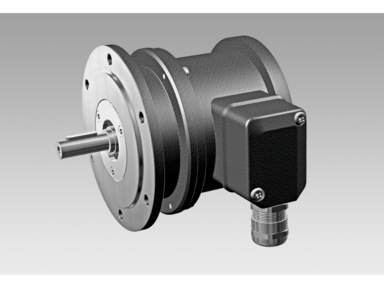

Incremental encoders Robust, compact housing Two bearings with large distance, one at each end High shaft load up to 450 N Shaft insulation up to 2.8 kV Highest operating speed 10000 rpm Terminal box, turn by 180°

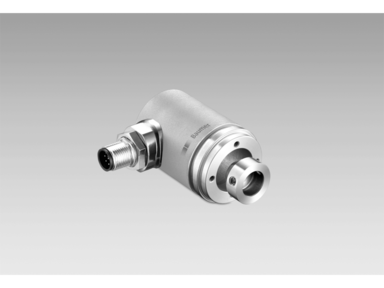

Absolute encoders Interface CANopen®Magnetic sensing methodResolution: singleturn 13 bit, multiturn 16 bitFunction display via LEDsMultiturn sensing with Energy Harvesting technology, without gear or batteryTwo-sided bearing system with hybrid bearingsSpecial protection against corrosion C5-M

Absolute encoders Encoder singleturn / BiSS CEncoder for integrationOptical sensing methodResolution: singleturn 21 bit

Absolute encoders Encoder kit single- or multiturn / CANopen®Precise magnetic sensingAngular accuracy up to ±0.15°Additional incremental signalsHigh protection up to IP 67High resistance to shock and vibrationsElectronic gear function

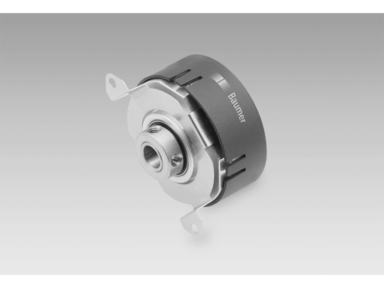

Incremental encoders Size ø58 mmPrecise optical sensingOutput signal level TTL or HTLBlind hollow shaft, ø8…15 mmConnection axial, radial or tangentialPulses per revolution up to 5000High protection up to IP 67High resistance to shock and vibrations

Absolute encoders Absolute encoder multiturnOptical sensing methodMax. resolution: singleturn 18 bit, multiturn 16 bitBlind hollow shaftLED status displayEtherCATMaximum resistant against magnetic fields

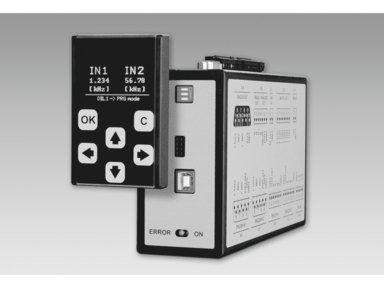

Speed switches SIL3 and PLe certificationMonitoring of underspeed, overspeed, standstill and rotating directionInputs for HTL/RS422/SinCos encoders and sensorsSafety related outputs and signal splitterMounting to 35 mm DIN rail (according to EN 60715)USB interface for simple parametrization by the O ...

Incremental encoders Size ø58 mmPrecise optical sensing (interpolated)Output signal level programmable (TTL or HTL)Clamping flangeConnection axial, radial or tangentialPulses per revolution 1...65536, programmableHigh protection up to IP 67High resistance to shock and vibrations

Tachogenerators Low response timeOpen circuit voltage 7...10 mV per rpmBlind hollow shaft ø8...12 mmHigh signal quality due to patented LongLife technologyNo auxiliary energy source required

Hall sensors flylead connector PUR M12, L=200 mm-25 … 75 °C

Incremental encoders - combination Mechanical speed monitoring based on centrifugal force Robust, compact housing Two-sided bearing system with optimal bearing spacing Shaft load up to 450 N Shaft insulation up to 2.8 kV Terminal boxes, turn by 180°

Speed switches Electronic speed monitoring Circuit breaker with one selectable threshold speed Relay output with isolated changeover contact

Incremental encoders - combination Robust, compact housing Hybrid bearing for extended service life 3 switching outputs speed controlled (independent transistor outputs) Freely programmable on and off switching speed Programming via included software (RS485 interface) Output stage HTL or TTL

Absolute encoders Interface DeviceNetMagnetic sensing methodResolution: singleturn 13 bit, multiturn 16 bitFunction display via LEDsMultiturn sensing with Energy Harvesting technology, without gear or batteryTwo-sided bearing system with hybrid bearingsSpecial protection against corrosion C5-M

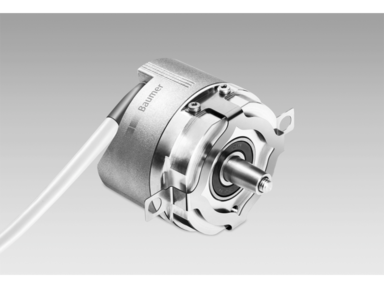

Absolute encoders Encoder singleturn / BiSS COptical sensing methodResolution: singleturn 13 bitAdditional incremental signals 2048 sine periodsCone shaftOperating temperature max. +105 °C

Absolute encoders Encoder kit single- or multiturn / SSIPrecise magnetic sensingAngular accuracy up to ±0.15°Resolution max. 32 bit (14 bit ST, 18 bit MT)Additional incremental signalsClock frequency up to 2 MHzHigh protection up to IP 67High resistance to shock and vibrations

Incremental encoders Size ø58 mmPrecise optical sensingOutput signal level TTL or HTLBlind hollow shaft, ø8…15 mmConnection axial, radial or tangentialPulses per revolution up to 5000High protection up to IP 67High resistance to shock and vibrationsOption 6301, hybrid ball bearings for protectio ...

Absolute encoders Absolute encoder multiturnOptical sensing methodMax. resolution: singleturn 18 bit, multiturn 16 bitBlind hollow shaftLED status displayEtherNet/IPMaximum resistant against magnetic fieldsButton for Preset/ResetRotary coding switch for IP address

Speed switches SIL3 and PLe certificationMonitoring of underspeed, overspeed, standstill and rotating directionInputs for HTL/RS422/SinCos encoders and sensorsSafety related outputsMounting to 35 mm DIN rail (according to EN 60715)USB interface for simple parametrization by the OS 6.0 operator surfa ...

Incremental encoders Size ø58 mmPrecise optical sensing (interpolated)Output signal level programmable (TTL or HTL)Square flange 2.5" (63.5 mm)Connection axial, radial or tangentialPulses per revolution 1...65536, programmableHigh protection up to IP 67High resistance to shock and vibrations

Tachogenerators Temperature compensation of tacho voltage as standardOpen circuit voltage 10...60 mV per rpmBlind hollow shaft ø12...16 mmHigh signal quality due to patented LongLife technologyLow moment of inertiaNo auxiliary energy source required

Hall sensors cable FEP, 2 m-40 … 120 °C

Incremental encoders - combination Mechanical speed monitoring based on centrifugal forceRobust, compact housingTwo bearings with large distance, one at each endHigh shaft load up to 350 NTTL output driver for cable length up to 550 mTerminal boxes, turn by 180°

Speed switches Electronic speed monitoringCircuit breaker with three selectable threshold speedsThree independent transistor outputs, adjusting ±10 % above 1000 rpm

Incremental encoders - combination Mechanical speed monitoring based on centrifugal force Robust, compact housing Two-sided bearing system with optimal bearing spacing Shaft load up to 450 N Shaft insulation up to 2.8 kV Terminal boxes, turn by 180°

Absolute encoders Magnetic sensing methodFunction display via LEDsMultiturn sensing with Energy Harvesting technology, without gear or batteryTwo-sided bearing system with hybrid bearingsSpecial protection against corrosion C5-M

Absolute encoders Encoder singleturn / SSIOptical sensing methodResolution: singleturn 13 bitAdditional incremental signals 2048 sine periodsCone shaftOperating temperature max. +105 °C

Absolute encoders Encoder kit single- or multiturn / AnalogISO 13849 compliant firmwareE1 compliant designHigh protection up to IP 67High resistance to shock and vibrationsProtection against corrosion C5-MWire cross section 0.5 mm²Teach input for adjustment of measuring range

Incremental encoders Size ø58 mmPrecise optical sensingOutput signal level TTL or HTLEURO flange B10Connection axial, radial or tangentialPulses per revolution up to 5000High protection up to IP 67High resistance to shock and vibrations

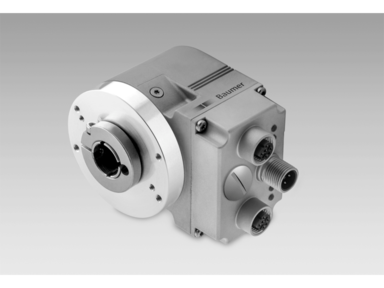

Absolute encoders Absolute encoder multiturnOptical sensing methodMax. resolution: singleturn 18 bit, multiturn 16 bitBlind hollow shaftLED status displayPROFINET IOMaximum resistant against magnetic fields
