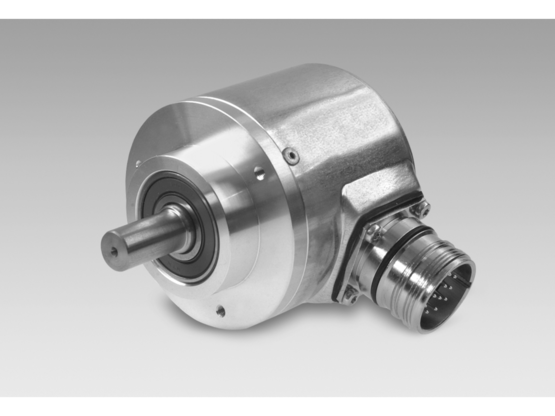

Baumer BDH - HighRes
Incremental encoders
- High resolution programmable encoder
- Solid shaft ø10 mm or ø6 mm
- Optical sensing method
- Max. 320000 pulses per revolution
- Clamping or synchro flange
- Industrial standard
- Small profile depth
| Voltage supply: | 5 VDC ±10 % 10...30 VDC |
|---|---|
| Approval: | UL approval / E217823 |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Output stages: | Antivalent Push-pull short-circuit proof Push-pull antiv. short-circuit proof |
| Output signals: | A 90° B, N + inverted |
| Output frequency: | ≤300 kHz (24K) ≤1300 kHz (05A) |
| Sensing method: | Optical |
| Reference signal: | Zero pulse, width 90° |
| Pulses per revolution: | 7200 … 320000 |
| Consumption typ.: | 80 mA (5 VDC, w/o load) 60 mA (24 VDC, w/o load) |
| Material: | Housing: steel Housing: aluminium (connection ‑A) Flange: aluminium |
|---|---|
| Operating temperature: | -20...+85 °C |
| Relative humidity: | 95 % non-condensing |
| Resistance: | DIN EN 60068-2-6 Vibration 10 g, 10-200 Hz DIN EN 60068-2-27 Shock 50 g, 11 ms |
| Connection: | Connector M23, 12-pin Cable 2 m |
| Operating torque typ.: | 0,022 Nm (IP 42) 0,026 Nm (IP 65) |
| Operating speed: | ≤12000 rpm (IP 42) ≤6000 rpm (IP 65) |
| Protection DIN EN 60529: | IP 42 IP 65 |
| Flange: | Clamping flange |
| Admitted shaft load: | ≤40 N axial ≤60 N radial |
| Shaft type: | ø10 mm solid shaft (clamping flange) |
| Size (flange): | ø55 mm |
| Weight approx.: | 300 g |
