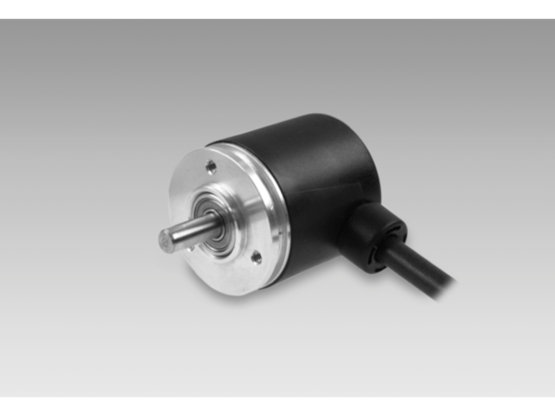

Baumer BDK
Incremental encoders
- Mini encoder with solid shaft ø5 mm
- Optical sensing method
- Max. 2048 pulses per revolution
- Housing ø30 mm
- Operation speed max. 12000 rpm
- Synchro flange
| Voltage supply: | 5 VDC ±10 % 10...30 VDC |
|---|---|
| Approval: | UL approval / E217823 |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Output stages: | Linedriver/RS422 Push-pull short-circuit proof |
| Output signals: | A 90° B, N + inverted |
| Output frequency: | ≤100 kHz |
| Sensing method: | Optical |
| Reference signal: | Zero pulse, width 90° |
| Pulses per revolution: | 10 … 2048 |
| Consumption typ.: | 60 mA (5 VDC, w/o load) 30 mA (24 VDC, w/o load) |
| Material: | Housing: polyamide black Flange: aluminium |
|---|---|
| Operating temperature: | -20...+85 °C |
| Relative humidity: | 95 % non-condensing |
| Resistance: | DIN EN 60068-2-6 Vibration 10 g, 16-200 Hz DIN EN 60068-2-27 Shock 50 g, 11 ms |
| Connection: | Connector M9, 5-pin Connector M9, 8-pin Cable 1 m |
| Operating torque typ.: | 0,0014 Nm (IP 42) 0,0075 Nm (IP 64) |
| Operating speed: | ≤12000 rpm (IP 42) ≤6000 rpm (IP 64) |
| Protection DIN EN 60529: | IP 42 IP 64 |
| Flange: | Synchro flange |
| Admitted shaft load: | ≤10 N axial ≤10 N radial |
| Shaft type: | ø5 mm solid shaft |
| Size (flange): | ø30 mm |
| Weight approx.: | 85 g |
