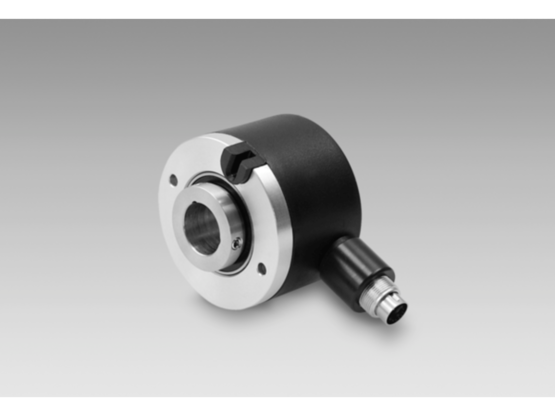

Baumer BRIH 40 - EcoMag
Incremental encoders
- Mini encoder with blind hollow shaft max. ø12 mm
- Magnetic sensing method
- Max. 1024 pulses per revolution
- Housing ø40 mm
- High resistance to shock and vibrations
- Wide pulse number range
| Voltage supply: | 5 VDC ±10 % 20...28 VDC |
|---|---|
| Approval: | UL approval / E217823 |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Output stages: | Antivalent Push-pull short-circuit proof |
| Output signals: | A 90° B, N + inverted |
| Output frequency: | ≤320 kHz |
| Sensing method: | Magnetic |
| Reference signal: | Zero pulse, width 90° |
| Pulses per revolution: | 2 … 1024 |
| Consumption typ.: | 25 mA (5 VDC, w/o load) 30 mA (24 VDC, w/o load) |
| Operating temperature: | -20...+85 °C (only 5 VDC) -20...+65 °C |
|---|---|
| Relative humidity: | 95 % non-condensing |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 100 g, 6 ms |
| Connection: | Connector M9, 5-pin Connector M9, 8-pin Cable 1 m |
| Material: | Housing: polyamide black Flange: aluminium |
| Operating torque typ.: | 0,0075 Nm |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 64 |
| Shaft type: | ø6 mm (blind hollow shaft) ø12 mm (blind hollow shaft) |
| Size (flange): | ø40 mm |
| Weight approx.: | 120 g |
