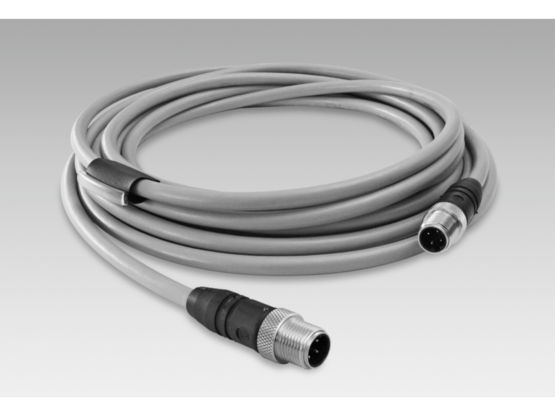

Baumer Cable connector M12, 4-pin, on both sides, D-coded, 1 m cable (Z 185.E01)
Cables / connectors
- Cable connector M12, 4-pin, for EtherNet encoder
- With shielded cable
- Cable for flexible cable carriers
- Protection IP 67
information
- Baumer Cable connector M12, 4-pin, on both sides, D-coded, 1 m cable (Z 185.E01) Technical Data - Electrical Ratings
- Baumer Cable connector M12, 4-pin, on both sides, D-coded, 1 m cable (Z 185.E01) Technical Data - Mechanical Design
- Baumer Cable connector M12, 4-pin, on both sides, D-coded, 1 m cable (Z 185.E01) Downloads
| Nominal voltage: | 250 V |
|---|---|
| Nominal current: | 4 A |
| Cable length: | 1 m, 2 m, 5 m, 10 m (further length upon request) |
| Operating temperature: | -25...+80 °C |
| Protection DIN EN 60529: | IP 67 |
| Material: | Cable sheath: PUR green, halogen free |
