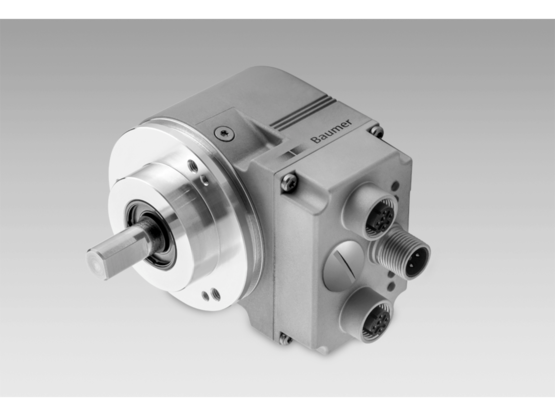

Baumer EAL580-SC - EtherNet/IP - OptoTurn®
Absolute encoders
- Absolute encoder multiturn
- Optical sensing method
- Max. resolution: singleturn 18 bit, multiturn 16 bit
- Clamping flange
- LED status display
- EtherNet/IP
- Maximum resistant against magnetic fields
- Button for Preset/Reset
- Rotary coding switch for IP address
| Voltage supply: | 10...30 VDC |
|---|---|
| Approval: | UL approval / E63076 |
| Status indicator: | 4x LED integrated in housing |
| Emitted interference: | DIN EN 61000-6-4 |
| Interference immunity: | DIN EN 61000-6-2 |
| Sensing method: | Optical |
| Absolute accuracy: | ±0,01 ° (ST 18 bit / MT 13 bit) ±0,025 ° (ST 13 bit / MT 16 bit) |
| Total resolution: | ≤ 31 bit |
| Number of revolutions: | ≤65536 / 16 bit (adjustable) |
| Steps per revolution: | ≤262144 / 18 bit (adjustable) |
| Function: | Multiturn |
| Interface: | EtherNet/IP |
| Consumption w/o load: | ≤100 mA (24 VDC) |
| Reverse polarity protection: | Yes |
| Admitted shaft load: | ≤20 N axial ≤40 N radial |
|---|---|
| Material: | Housing: zinc diecast Flange: aluminium |
| Operating temperature: | -40...+85 °C (see general information) |
| Relative humidity: | 95 % non-condensing |
| Resistance: | DIN EN 60068-2-6 Vibration ±0.75 mm - 10-58 Hz 10 g - 58-2000 Hz DIN EN 60068-2-27 Shock 200 g, 3 ms |
| Weight approx.: | 500 g |
| Rotor moment of inertia: | 20 gcm² |
| Starting torque: | ≤0,03 Nm (+25 °C, IP 65/IP 67) ≤0,015 Nm (+25 °C, IP 54) |
| Starting acceleration: | ≤1000 U/s² |
| Operating speed: | ≤10000 rpm (mechanical) ≤6000 rpm (electric) |
| Protection DIN EN 60529: | IP 54 IP 65 IP 67 |
| Flange: | Clamping flange |
| Shaft type: | ø10 x 20 mm, solid shaft with flat |
| Size (flange): | ø58 mm |
| Connection: | Flange connector 3 x M12 |
