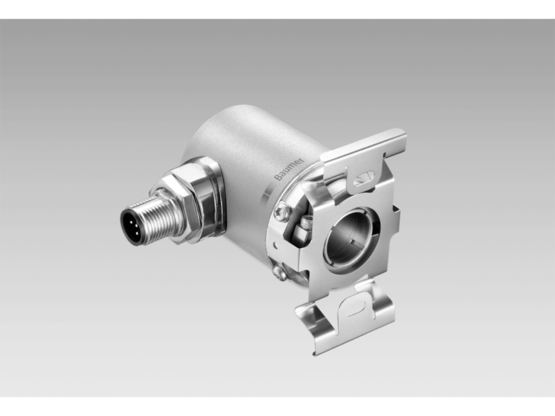

Baumer EAM360-B - SSI - MAGRES
Absolute encoders
- Encoder single- or multiturn / SSI
- Precise magnetic sensing
- Angular accuracy up to ±0.15°
- Resolution max. 32 bit (14 bit ST, 18 bit MT)
- Additional incremental signals
- Clock frequency up to 2 MHz
- High protection up to IP 67
- High resistance to shock and vibrations
| Voltage supply: | 4.5…30 VDC (SSI, SSI + TTL/RS422) 5.5…30 VDC (SSI + HTL/Push-pull) |
|---|---|
| Code sequence: | CW: ascending values with clockwise sense of rotation; looking at flange |
| Inputs: | SSI clock: Linereceiver RS422 Zero setting input Counting direction |
| Output stages: | SSI data: Linedriver RS422 Incremental: linedriver RS422 or push-pull (option) |
| Incremental output: | 1024, 2048, 4096 ppr (other on request) |
| Output signals: | A+, A-, B+, B- |
| Output frequency: | ≤350 kHz |
| Interference immunity: | DIN EN 61000-6-2 |
| Emitted interference: | DIN EN 61000-6-4 |
| Diagnostic function: | DATAVALID (on request) |
| Code: | Gray or binary |
| Sensing method: | Magnetic |
| Consumption typ.: | 60 mA (5 VDC, w/o load) 20 mA (24 VDC, w/o load) |
| Initializing time: | ≤170 ms after power on |
| Data currency: | Typ. 2 µs (cyclic request) |
| Interface: | SSI SSI + incremental |
| Function: | Multiturn Singleturn |
| Operating mode: | Linear feedback shift register (on request) |
| Steps per revolution: | ≤16384 / 14 bit |
| Number of revolutions: | ≤262144 / 18 bit |
| Absolute accuracy: | ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) |
| Weight approx.: | 170 g |
|---|---|
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms |
| Relative humidity: | 95 % |
| Operating temperature: | -40...+85 °C (see general information) |
| Material: | Housing: steel zinc-coated Flange: aluminium Hollow shaft: stainless steel |
| Moment of inertia: | 46,75 gcm² |
| Starting torque: | ≤2 Ncm (+20 °C, IP 65) ≤2,5 Ncm (+20 °C, IP 67) |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 65 (without shaft seal) IP 67 (with shaft seal) |
| Shaft type: | ø10...15 mm (blind hollow shaft) |
| Size (flange): | ø36 mm |
| Connection: | Flange connector M12, 8-pin Flange connector M12, 12-pin Cable 2 m |
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø14 mm, M12 radial, pin torque support, IP65/IP67
- ZIP
- 91.84 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø15 mm, cable radial, with stator coupling, IP65/IP67
- ZIP
- 131.9 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø15 mm, cable radial, without stator coupling, IP65/IP67
- ZIP
- 185.71 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø15 mm, cable radial, pin torque support, IP65/IP67
- ZIP
- 141.31 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø15 mm, M12 radial, with stator coupling, IP65/IP67
- ZIP
- 128.41 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø15 mm, M12 radial, without stator coupling, IP65/IP67
- ZIP
- 102.77 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø15 mm, M12 radial, pin torque support, IP65/IP67
- ZIP
- 92.2 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø14 mm, M12 radial, without stator coupling, IP65/IP67
- ZIP
- 178.85 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø14 mm, M12 radial, with stator coupling, IP65/IP67
- ZIP
- 144.21 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø12 mm, cable radial, with stator coupling, IP65/IP67
- ZIP
- 188.56 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø12 mm, cable radial, without stator coupling, IP65/IP67
- ZIP
- 102.38 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø12 mm, cable radial, pin torque support, IP65/IP67
- ZIP
- 144.21 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø12 mm, M12 radial, with stator coupling, IP65/IP67
- ZIP
- 178.85 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø12 mm, M12 radial, without stator coupling, IP65/IP67
- ZIP
- 91.84 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø12 mm, M12 radial, pin torque support, IP65/IP67
- ZIP
- 131.9 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø14 mm, cable radial, with stator coupling, IP65/IP67
- ZIP
- 185.71 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø14 mm, cable radial, without stator coupling, IP65/IP67
- ZIP
- 188.56 KB
3D CAD data - EAM360 / EAM360R: Blind hollow shaft ø14 mm, cable radial, pin torque support, IP65/IP67
- ZIP
- 102.38 KB
