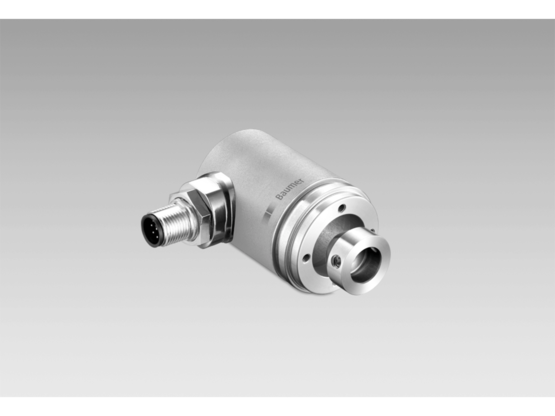

Baumer EAM360-K - CANopen® - MAGRES
Absolute encoders
- Encoder kit single- or multiturn / CANopen®
- Precise magnetic sensing
- Angular accuracy up to ±0.15°
- Additional incremental signals
- High protection up to IP 67
- High resistance to shock and vibrations
- Electronic gear function
| Voltage supply: | 10...30 VDC |
|---|---|
| Emitted interference: | DIN EN 61000-6-4 |
| Interference immunity: | DIN EN 61000-6-2 |
| Output frequency: | ≤350 kHz |
| Output signals: | A+, A-, B+, B- |
| Incremental output: | 1024, 2048, 4096 ppr (other on request) |
| Output stages: | CAN-Bus, LV (3.3 V) compatible ISO 11898 Incremental: linedriver RS422 or push-pull (option) |
| Code sequence: | CW: ascending values with clockwise sense of rotation; looking at flange |
| Sensing method: | Magnetic |
| Absolute accuracy: | ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) (see info working distance) |
| Number of revolutions: | ≤262144 / 18 bit |
| Consumption typ.: | 20 mA (24 VDC, w/o load) |
| Initializing time: | ≤170 ms after power on |
| Data currency: | <1 ms |
| Interface: | CANopen® CANopen®-Lift CANopen® + incremental |
| Function: | Multiturn Singleturn |
| Profile conformity: | CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406, DS 417 |
| Steps per revolution: | ≤16384 / 14 bit |
| Weight approx.: | 170 g |
|---|---|
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms |
| Relative humidity: | 95 % |
| Operating temperature: | -40...+85 °C (see general information) |
| Material: | Housing: steel zinc-coated Flange: aluminium |
| Working distance: | 1,1 ±0.9 mm axial / ≤0.3 mm eccentricity |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 67 |
| Shaft type: | ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore) |
| Size (flange): | ø36 mm |
| Connection: | Flange connector M12, 5-pin Flange connector M12, 8-pin Cable 2 m |
3D CAD data - EAM360 / EAM360R: Kit ø12 mm, cable radial, synchro flange, IP67
- ZIP
- 52.68 KB
