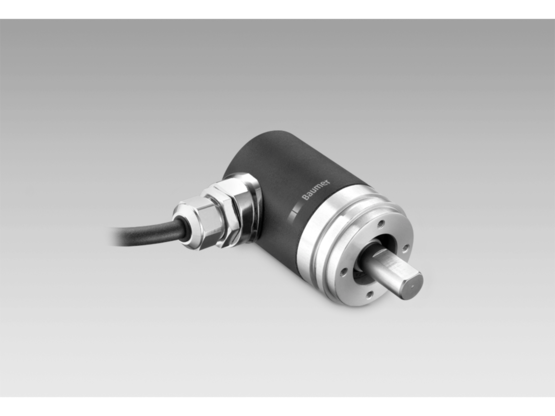

Baumer EAM360R-S - analog - MAGRES
Absolute encoders
- Encoder single- or multiturn / Analog
- ISO 13849 compliant firmware
- E1 compliant design
- High protection up to IP 67
- High resistance to shock and vibrations
- Protection against corrosion C5-M
- Wire cross section 0.5 mm²
- Teach input for adjustment of measuring range
| Voltage supply: | 8...30 VDC 14...30 VDC |
|---|---|
| Factory setting: | 360° and 10 revolutions (other on request) |
| Diagnostic function: | DATAVALID |
| Programmable parameters: | Measuring range teachable |
| Emitted interference: | DIN EN 61000-6-4 CISPR 25:2008 (30..1000 MHz) ISO 7637-2:2004* * Severity level according to ECE R10 (Rev. 4) |
| Interference immunity: | DIN EN 61000-6-2 ISO 11452-2:2004* / -5:2002* ISO 7637-2:2004* ISO 10605:2008 + Amd 1:2014 (CD ±8 kV / AD ±15 kV) * Severity level according to ECE R10 (Rev. 4) |
| Sensing method: | Magnetic |
| Accuracy analog output: | ±0.5 % of whole measuring range (-40...+85 °C) |
| Absolute accuracy: | ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) sensor |
| Teach range: | 5°...359.9° (singleturn) 5°...32767 turns (multiturn) |
| Reverse polarity protection: | Yes |
| Consumption typ.: | 20 mA (24 VDC, w/o load) |
| Initializing time: | ≤170 ms after power on |
| Response time: | < 1 ms |
| Interface: | Analog 0...10 V / 0.5...4.5 V / 4...20 mA / Resolution: 12 bit |
| Function: | Multiturn Singleturn |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions CX (C5-M) according to ISO 12944-2 |
|---|---|
| Operating temperature: | -40...+85 °C (see general information) |
| Relative humidity: | 95 % |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms |
| Weight approx.: | 170 g |
| Connection: | Flange connector M12, 5-pin Cable 2 m |
| Material: | Housing: steel, powder-coated Flange: aluminium Shaft: stainless steel |
| Admitted shaft load: | ≤40 N axial ≤80 N radial |
| Moment of inertia: | 15,38 gcm² |
| Starting torque: | ≤2,5 Ncm (+20 °C, IP 67) |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 67 (with shaft seal) |
| Flange: | Synchro flange |
| Shaft type: | ø10 x 16 mm, solid shaft with flat |
| Size (flange): | ø36 mm |
| Instruction: | Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately). |
