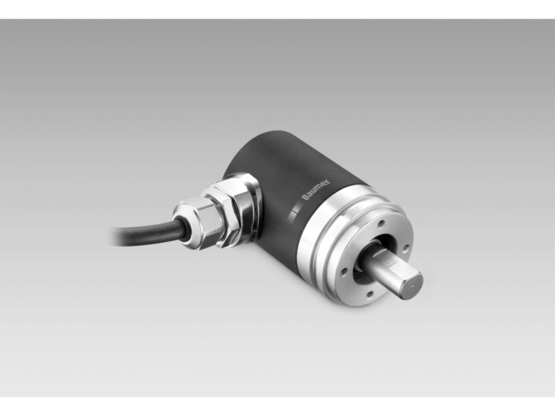

Baumer EAM360R-S - CANopen®/SAE J1939 - MAGRES
Absolute encoders
- Encoder single- or multiturn / CANopen®/SAE J1939
- ISO 13849 compliant firmware
- E1 compliant design
- High protection IP 67
- High resistance to shock and vibrations
- Protection against corrosion C5-M
- Wire cross section 0.5 mm²
- Electronic gear function
| Voltage supply: | 10...30 VDC |
|---|---|
| Emitted interference: | DIN EN 61000-6-4 CISPR 25:2008 (30..1000 MHz) ISO 7637-2:2004* * Severity level according to ECE R10 (Rev. 4) |
| Interference immunity: | DIN EN 61000-6-2 ISO 11452-2:2004* / -5:2002* ISO 7637-2:2004* ISO 10605:2008 + Amd 1:2014 (CD ±8 kV / AD ±15 kV) * Severity level according to ECE R10 (Rev. 4) |
| Output stages: | CAN-Bus, LV (3.3 V) compatible ISO 11898 |
| Code sequence: | CW: ascending values with clockwise sense of rotation; looking at flange |
| Sensing method: | Magnetic |
| Absolute accuracy: | ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) |
| Number of revolutions: | ≤262144 / 18 bit |
| Steps per revolution: | ≤16384 / 14 bit |
| Profile conformity: | CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406 |
| Function: | Multiturn Singleturn |
| Interface: | CANopen® SAE J1939 |
| Initializing time: | ≤170 ms after power on |
| Consumption typ.: | 20 mA (24 VDC, w/o load) |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions CX (C5-M) according to ISO 12944-2 |
|---|---|
| Operating temperature: | -40...+85 °C (see general information) |
| Relative humidity: | 95 % |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms |
| Weight approx.: | 170 g |
| Connection: | Flange connector M12, 5-pin Cable 2 m |
| Material: | Housing: steel, powder-coated Flange: aluminium Shaft: stainless steel |
| Admitted shaft load: | ≤40 N axial ≤80 N radial |
| Moment of inertia: | 15,38 gcm² |
| Starting torque: | ≤2,5 Ncm (+20 °C, IP 67) |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 67 (with shaft seal) |
| Flange: | Synchro flange |
| Shaft type: | ø10 x 16 mm, solid shaft with flat |
| Size (flange): | ø36 mm |
| Instruction: | Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately). |
