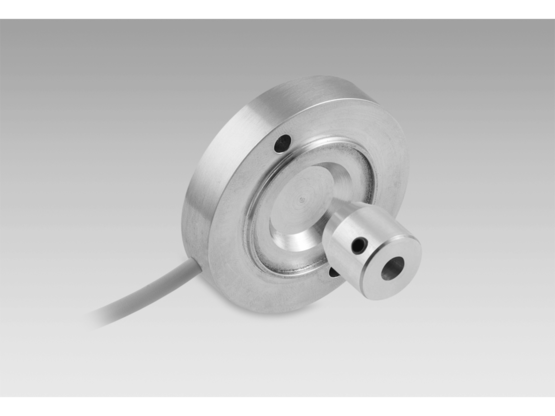

Baumer EAM500 analog

Baumer EAM500 analog

Absolute encoders

  • Encoder kit singleturn / Analog
  • Contactless measuring method
  • Flat design
  • Maintenance-free for the entire service life
  • Designed for harsh environmental conditions
  • Operating temperature -40...+85 °C
  • Resolution: 12 bit
  • Redundant version available
  • Protection IP 67, radial cable connection

Voltage supply: 8...30 VDC 12...30 VDC 5 VDC ±10 %
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
Sensing method: Magnetic
Absolute accuracy: ±1,8 ° (+25 °C)
Measuring range: 30°...360° See part number
Function: Singleturn
Interface: Analog 0...10 V / 0.5...4.5 V / 4...20 mA / Resolution: 12 bit
Initializing time: ≤20 ms after power on
Consumption typ.: 22 mA (24 VDC, 12 mA lout, w/o load, current output) 10 mA (24 VDC, w/o load, voltage output) 8 mA (5 VDC, w/o load, voltage output)
Short-circuit proof: Yes (14 VDC or ground)
Reverse polarity protection: Yes (8...30 VDC / 12...30 VDC)
Operating temperature: -40...+85 °C
Service life: No limitation
Resistance: DIN EN 60068-2-6 Vibration 20 g, 10-2000 Hz DIN EN 60068-2-27 Shock 50 g, 11 ms
Weight approx.: 53 g
Material: Housing: aluminium Magnet rotor: aluminium, anodised
Operating speed: ≤120 rpm
Protection DIN EN 60529: IP 67
Radial tolerance: ±0,8 mm
Axial tolerance: 1 … 3 mm
Shaft type: ø6 mm (magnet rotor bore) M7 screw
Size (flange): ø50 mm
Connection: Cable 0.3 m, radial
