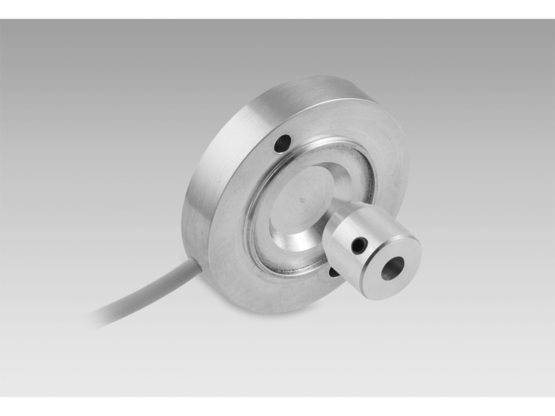

Baumer EAM500R-K - CANopen®

Baumer EAM500R-K - CANopen®

Encoders without bearings - absolute

  • Encoder kit singleturn / CANopen®
  • Contactless measuring method, flat design
  • Maintenance-free for the entire service life
  • Protection against corrosion CX (C5-M)
  • Operating temperature -40...+85 °C
  • Resolution 14 bit
  • Redundant version available
  • Protection up to IP 69K
  • Detection of magnetic loss
Voltage supply: 10...30 VDC
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
Code sequence: CW: ascending values with clockwise sense of rotation; looking at flange
Sensing method: Magnetic
Absolute accuracy: ±1,2 ° (+25 °C)
Linearity: ±0.3 % FS
Output stages: CAN-Bus, LV (3.3 V) compatible ISO 11898
Steps per revolution: ≤16384 / 14 bit
Measuring range: 0...360°
Profile conformity: CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406
Reverse polarity protection: Yes
Short-circuit proof: Yes (14 VDC or ground)
Consumption typ.: 14 mA (24 VDC, w/o load)
Update time: 20 ms
Initializing time: ≤15 ms after power on
Interface: CANopen®
Function: Singleturn
Weight approx.: 53 g
Temperature changes: EN 60068-2-14, -40…+85 °C, 5 cycles
Resistance: DIN EN 60068-2-6 Vibration 20 g, 10-2000 Hz DIN EN 60068-2-27 Shock 50 g, 6 ms
Service life: No limitation
Operating temperature: -40...+85 °C
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions CX (C5-M) according to ISO 12944-2
Material: Housing: aluminium, anodised Magnet rotor: aluminium, anodised
Working distance: 1 … 3 mm (axial), ±0.8 mm (radial)
Operating speed: ≤3000 rpm
Protection DIN EN 60529: IP 67 IP 69K
Shaft type: ø6 mm (magnet rotor bore) M7 screw
Size (flange): ø50 mm
Connection: Cable 0.3 m Cable 0.3 m with connector M12

Data sheet - EAM500R-K - CANopen®

  • PDF
  • 455.28 KB
Download

Data sheet - EAM500R-K - CANopen®

  • PDF
  • 446.47 KB
Download

Data sheet - EAM500R-K - CANopen®

  • PDF
  • 449.15 KB
Download

Brochures / Catalogs -

  • PDF
  • 210.03 KB
Download

Brochures / Catalogs -

  • PDF
  • 208.84 KB
Download

Brochures / Catalogs -

  • PDF
  • 209.39 KB
Download

Software - Toolsuite - CANopen

  • ZIP
  • 716.99 KB
Download

3D CAD - EAM500

  • ZIP
  • 22.06 KB
Download
