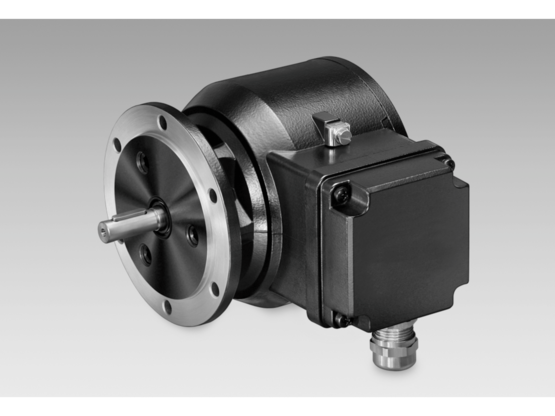

Baumer EExOG 9 S
Sine encoders
- Sine encoder / ATEX / IECEx
- Optical sensing method
- ATEX II 2 G Ex db eb IIC T5/T6 Gb
- IECEx Ex db eb IIC T5/T6 Gb
- Solid shaft ø11 mm
- Robust light-metal housing
- Top-quality SinCos output-signals
- Low harmonic content (patented LowHarmonics technology)
- Large terminal box, turn by 90°
| Voltage supply: | 5 VDC ±5 % 9...30 VDC |
|---|---|
| Approval: | CE ATEX IECEx |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Bandwidth: | 250 kHz (-3 dB) |
| DC offset: | ≤20 mV |
| Harmonics typ.: | -50 dB |
| Difference of SinCos amplitude: | ≤20 mV |
| Output stages: | SinCos 1 Vpp |
| Consumption w/o load: | ≤90 mA |
| Sinewave cycles per revolution: | 1024 … 2048 |
| Phase shift: | 90 ° |
| Reference signal: | Zero pulse, width 90° |
| Sensing method: | Optical |
| Output signals: | K1, K2, K0 + inverted |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
|---|---|
| Ambient temperature: | -20...+55 °C |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 50-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 2 G Ex db eb IIC T5/T6 Gb Ex db eb IIC T5/T6 Gb |
| Connection: | Terminal box |
| Rotor moment of inertia: | 290 gcm² |
| Operating torque typ.: | 4 Ncm |
| Operating speed: | ≤6000 rpm (T5, mechanical) ≤4500 rpm (T6, mechanical) |
| Protection DIN EN 60529: | IP 56 |
| Flange: | EURO flange B10 |
| Admitted shaft load: | ≤200 N axial ≤350 N radial |
| Shaft type: | ø11 mm solid shaft |
| Size (flange): | ø115 mm |
| Weight approx.: | 3,5 kg |
