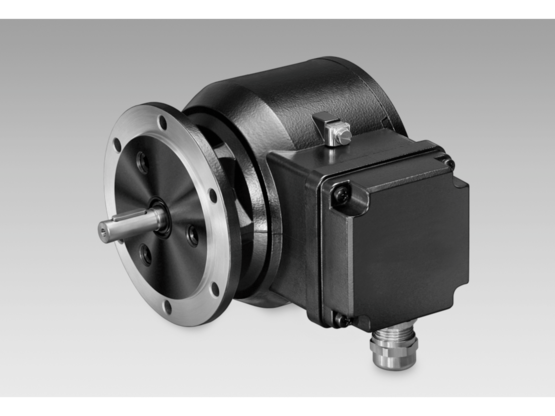

Baumer EExOG 9
Incremental encoders
- Encoder incremental / ATEX / IECEx
- Optical sensing method
- ATEX II 2 G Ex db eb IIC T5/T6 Gb
- IECEx Ex db eb IIC T5/T6 Gb
- Robust light-metal housing
- Output stage HTL or TTL
- Output stage TTL with regulator UB 9...26 VDC
- Large terminal box, turn by 90°
- Optional: Cable gland M20x1.5 or M25x1.5
| Voltage supply: | 9...30 VDC 5 VDC ±5 % 9...26 VDC |
|---|---|
| Approval: | CE ATEX IECEx |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Output stages: | HTL TTL/RS422 |
| Output signals: | K1, K2, K0 + inverted |
| Output frequency: | ≤120 kHz (pulses ≤1250) ≤250 kHz (pulses >1250) |
| Sensing method: | Optical |
| Reference signal: | Zero pulse, width 90° |
| Duty cycle: | 40…60 % |
| Phase shift: | 90 ° ±20° |
| Pulses per revolution: | 120 … 5000 |
| Consumption w/o load: | ≤100 mA |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
|---|---|
| Ambient temperature: | -20...+55 °C Option: -40...+55 °C (120...2500 pulses per revolution) Option: -25...+55 °C (3072...5000 pulses per revolution) |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 50...2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 2 G Ex db eb IIC T5/T6 Gb Ex db eb IIC T5/T6 Gb |
| Connection: | Terminal box |
| Rotor moment of inertia: | 290 gcm² |
| Operating torque typ.: | 4 Ncm |
| Operating speed: | ≤6000 rpm (T5, mechanical) ≤4500 rpm (T6, mechanical) |
| Protection DIN EN 60529: | IP 56 |
| Flange: | EURO flange B10 |
| Admitted shaft load: | ≤200 N axial ≤350 N radial |
| Shaft type: | ø11 mm solid shaft |
| Size (flange): | ø115 mm |
| Weight approx.: | 3,5 kg |
