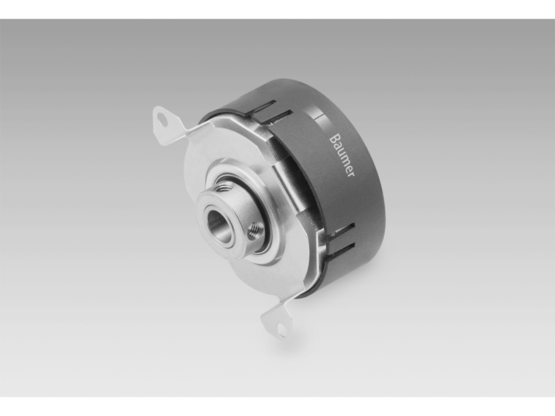

Baumer EFL360-B (blind hollow shaft)
Absolute encoders
- Encoder singleturn / BiSS C
- Encoder for integration
- Optical sensing method
- Resolution: singleturn 21 bit
| Voltage supply: | 5 VDC ±10 % |
|---|---|
| Approval: | CE |
| Emitted interference: | EN 61000-6-3 (when installed) |
| Interference immunity: | EN 61000-6-2 (when installed) |
| Accuracy temperature sensor: | ±7 °C |
| Measuring range temperature sensor: | -40...+125 °C (PCB temperature) |
| Code: | Gray or binary |
| Sensing method: | Optical |
| Processing time: | ≤ 7 µs |
| Consumption w/o load: | ≤100 mA |
| Interface: | BiSS C |
| Function: | Singleturn |
| Steps per revolution: | 21 bit |
| Telegram: | 21 bit + error + warning |
| Telegram + CRC: | 23 bit + 6 bit CRC |
| Weight approx.: | 42 g |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 10 g, 16-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Relative humidity: | 98 % non-condensing |
| Operating temperature: | -20...+115 °C |
| Material: | Flange: aluminium |
| Rotor moment of inertia: | 4 gcm² |
| Starting torque: | ≤0,2 Ncm |
| Operating speed: | ≤6000 rpm (mechanical) (higher on request) |
| Protection DIN EN 60529: | IP 20 |
| Shaft type: | ø6 mm (blind hollow shaft) |
| Size (flange): | ø36 mm |
| Connection: | IllumiMate™ PCB connector 6-pin |
