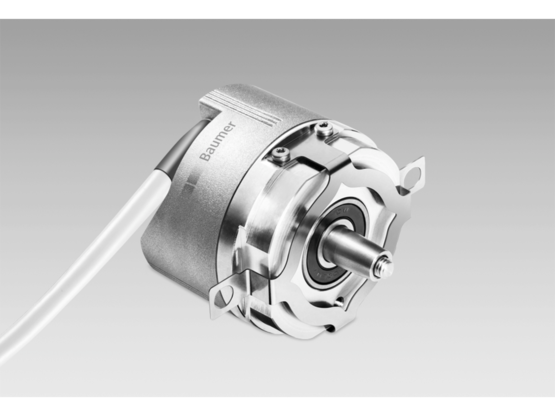

Baumer EFL580 - BiSS C
Absolute encoders
- Encoder singleturn / BiSS C
- Optical sensing method
- Resolution: singleturn 13 bit
- Additional incremental signals 2048 sine periods
- Cone shaft
- Operating temperature max. +105 °C
| Voltage supply: | 5 VDC ±10 % (please consider the voltage drop on the supply cable) |
|---|---|
| Approval: | UL approval / E63076 |
| Emitted interference: | DIN EN 61000-6-4 |
| Interference immunity: | DIN EN 61000-6-2 |
| Incremental output: | 2048 sinewaves A, B, sine 1 Vpp |
| Code: | Binary |
| Sensing method: | Optical |
| Steps per revolution: | 8192 / 13 bit |
| Function: | Singleturn |
| Interface: | BiSS C SinCos |
| Consumption w/o load: | ≤50 mA |
| Reverse polarity protection: | Yes |
| Operating temperature: | -25...+105 °C |
|---|---|
| Relative humidity: | 95 % non-condensing |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 16-2000 Hz DIN EN 60068-2-27 Shock 200 g, 3 ms |
| Weight approx.: | 620 g (5 m cable) 940 g (Option: 10 m cable) |
| Material: | Housing: aluminium Flange: aluminium |
| Rotor moment of inertia: | 20 gcm² |
| Operating speed: | ≤6000 rpm (electric) |
| Protection DIN EN 60529: | IP 64 |
| Shaft type: | ø9.25 mm cone shaft (1:10) |
| Size (flange): | ø58 mm |
| Connection: | Cable 5 m with D-SUB, 15-pin Option: cable 10 m |
