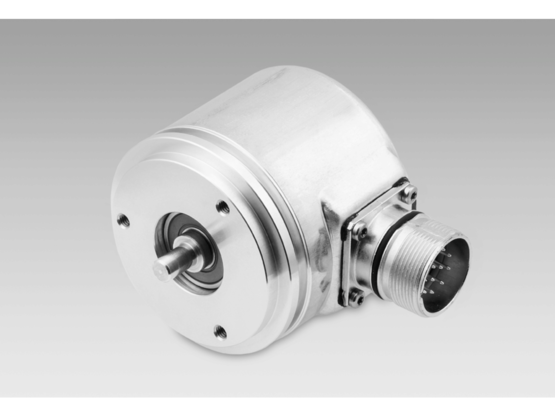

Baumer EIL576S-S
Incremental encoders
- Encoder with solid shaft ø10 mm or ø6 mm
- Max. 5000 pulses per revolution
- Optical sensing method
- Clamping or synchro flange
- High rotation speed up to 10000 rpm
- Compact design
- For safety-relevant applications in compliance with SIL2 (Safety Integrity Level 2)
| Voltage supply: | 24 VDC +20/-50 % |
|---|---|
| Approval: | UL approval / E63076 SIL2 approval according to DIN EN 61508 |
| Emitted interference: | DIN EN 61000-6-4 |
| Interference immunity: | DIN EN 61000-6-2 IEC 61326-3-1 |
| Safety operating figures: | Encoder operating life: 20 years PFH: 1.16E-08 1/h SFF: >90 % |
| Output stages: | Linedriver/RS422 Push-pull short-circuit proof |
| Output signals: | A 90° B + inverted |
| Output frequency: | ≤150 kHz |
| Sensing method: | Optical |
| Reference signal: | Zero pulse 70...720° electr. |
| Pulses per revolution: | 5 … 5000 |
| Consumption w/o load: | ≤30 mA |
| Reverse polarity protection: | Yes |
| Material: | Housing: aluminium Flange: aluminium |
|---|---|
| Operating temperature: | -25...+85 °C |
| Relative humidity: | 95 % non-condensing |
| Resistance: | DIN EN 60068-2-6 Vibration 10 g, 16-2000 Hz DIN EN 60068-2-27 Shock 100 g, 6 ms |
| Connection: | Connector M12, 8-pin Connector M23, 12-pin |
| Rotor moment of inertia: | 14,5 gcm² |
| Starting torque: | ≤0,015 Nm (+25 °C, IP 54) ≤0,03 Nm (+25 °C, IP 65) |
| Operating speed: | ≤10000 rpm |
| Protection DIN EN 60529: | IP 54 (without shaft seal) IP 65 (with shaft seal) |
| Flange: | Clamping or synchro flange |
| Admitted shaft load: | ≤20 N axial ≤40 N radial |
| Shaft type: | ø6 mm solid shaft (synchro flange) ø10 mm solid shaft (clamping flange) |
| Size (flange): | ø58 mm |
| Weight approx.: | 250 g |
