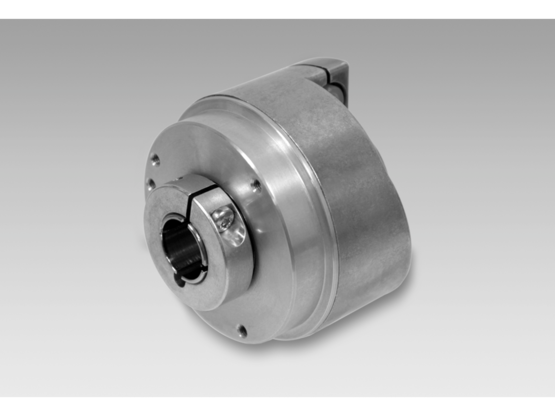

Baumer EIL576S-T
Sine encoders
- Encoders for functional safety
- SIL 2 / Category 3, PLd (up to SIL 3 / Category 4, PLe)
- Max. 1024 or 2048 sinewaves cycles per turn
- Incremental encoder with SinCos interface
- High LowHarmonics® signal quality
- Detachable cable – tangential outlet
- Suitable as motor feedback system for safety-relevant applications
| Voltage supply: | 5 VDC ±10 % |
|---|---|
| Approval: | SIL2 (DIN EN IEC 61508-1:2010 / IEC 61800-5-2:2016 Category 3, PLd EN ISO 13849-1:2015) With a redundant use: SIL3 (DIN EN IEC 61508-1:2010 / IEC 61800-5-2:2016 Category 4, PLe EN ISO 13849-1:2015) |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Protection class: | III (DIN EN 61140) |
| Safety operating figures: | (at +40 °C): MTTF: ≤100 years PFH: 1.2E-09 1/h SFF: 96.9 % DC: 93.4 (medium) PFDavg: 1.05E-04 1/h Service life/proof test intervall: 10 a |
| Output stages: | SinCos 1 Vpp |
| Output signals: | A, B, 0 |
| Output frequency: | ≤180 kHz (-3 dB) |
| Sensing method: | Optical |
| Sinewave cycles per revolution: | 1024 … 2048 |
| Consumption w/o load: | ≤100 mA |
| Reverse polarity protection: | Yes |
| Material: | Housing: aluminium Shaft: stainless steel |
|---|---|
| Operating temperature: | -30...+100 °C |
| Relative humidity: | 90 % non-condensing |
| Resistance: | DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz DIN EN 60068-2-27 Shock 100 g, 6 ms |
| Connection: | Board connector, 8-pin |
| Starting torque: | ≤0,015 Nm (+20 °C) |
| Operating speed: | ≤6000 rpm |
| Degree of soiling: | 2 (DIN EN 61010) |
| Protection DIN EN 60529: | IP 65 |
| Mounting kit: | 019 (required for SIL approval) 021 (required for SIL approval) |
| Motor shaft tolerance: | ±0,25 mm axial ±0,1 mm radial |
| Shaft type: | ø10 mm (through hollow shaft) ø12 mm (through hollow shaft) ø14 mm (through hollow shaft) |
| Size (flange): | ø58 mm |
| Weight approx.: | 200 g |
Declaration of conformity - Incremental encoders EIL580-, HS35-, ITD2x-, ITD3-, ITD4x-, ITD6x-, ITD70-, TIL- series and ITD- combination
- 273.87 KB
