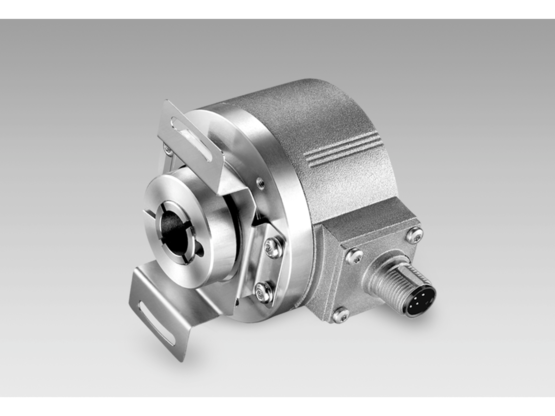

Baumer ExEIL580-T
Incremental encoders
- Size ø58 mm
- Precise optical sensing
- Output signal level TTL or HTL
- Through hollow shaft, ø8…15 mm
- Connection radial or tangential
- Pulses per revolution up to 5000
- High resistance to shock and vibrations
- Option 0122, Explosion protection zone 22
| Voltage supply: | 5 VDC ±5 % 8...30 VDC 4.75...30 VDC |
|---|---|
| Approval: | UL 508 / CSA 22.2 |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Output stages: | TTL/RS422 HTL/push-pull |
| Output signals: | A+, B+, R+, A-, B-, R- |
| Output frequency: | ≤300 kHz (TTL) ≤160 kHz (HTL) |
| Sensing method: | Optical |
| Reference signal: | Zero pulse, width 90° ±10 % |
| Reverse polarity protection: | Yes |
| Short-circuit proof: | Yes (HTL) Yes (TTL, max. 1 s and 1 signal) |
| Consumption w/o load: | ≤70 mA |
| Pulses per revolution: | 100 … 5000 |
| Phase shift: | 90 ° ±10° |
| Duty cycle: | 40…60 % |
| Connection: | Flange connector M12, 8-pin Flange connector M23, 12-pin Cable |
|---|---|
| Explosion protection: | II 3 D Ex tc IIIC T135°C Dc X (dust): see special conditions “X” |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 250 g, 6 ms |
| Relative humidity: | 90 % non-condensing |
| Ambient temperature: | -20...+60 °C |
| Material: | Housing: aluminium die-cast Flange: aluminium |
| Starting torque: | ≤0,025 Nm (+20 °C) |
| Operating speed: | ≤6000 rpm (+20 °C) ≤4500 rpm (+40 °C) ≤2500 rpm (+60 °C) |
| Protection DIN EN 60529: | IP 65 |
| Shaft type: | ø8...15 mm (through hollow shaft) |
| Size (flange): | ø58 mm |
| Weight approx.: | 300 g |
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, cable radial, stator coupling, IP65 / STEP (EIL580-TT14.5Rx.xxxxx.A)
- ZIP
- 1.2 MB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, cable tangential, without stator coupling, IP65 / STEP (EIL580-TN14.5Px.xxxxx.A)
- ZIP
- 507.35 KB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, cable tangential, stator coupling, IP65 / STEP (EIL580-TT14.5Px.xxxxx.A)
- ZIP
- 634.9 KB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, cable tangential, pin torque support 3 mm, IP65 / STEP (EIL580-TP14.5Px.xxxxx.A)
- ZIP
- 516.28 KB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, connector M12 radial, without stator coupling, IP65 / STEP (EIL580-TN14.5Bx.xxxxx.A)
- ZIP
- 1.16 MB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, connector M12 radial, stator coupling, IP65 / STEP (EIL580-TT14.5Bx.xxxxx.A)
- ZIP
- 1.41 MB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, connector M12 radial, pin torque support 3 mm, IP65 / STEP (EIL580-TP14.5Bx.xxxxx.A)
- ZIP
- 1.15 MB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, connector M23 radial, without stator coupling, IP65 / STEP (EIL580-TN14.5Fx.xxxxx.A)
- ZIP
- 568.61 KB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, connector M23 radial, stator coupling, IP65 / STEP (EIL580-TT14.5Fx.xxxxx.A)
- ZIP
- 829.67 KB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, connector M23 radial, pin torque support 3 mm, IP65 / STEP (EIL580-TP14.5Fx.xxxxx.A)
- ZIP
- 572.12 KB
3D CAD - EIL580: Through hollow shaft ø14 mm, clamping ring at A side, cable radial, without stator coupling, IP65 / STEP (EIL580-TN14.5Rx.xxxxx.A)
- ZIP
- 975.4 KB
3D CAD - EIL580: Through hollow shaft ø12 mm, clamping ring at A side, connector M23 radial, stator coupling, IP65 / STEP (EIL580-TT12.5Fx.xxxxx.A)
- ZIP
- 815.54 KB
3D CAD - EIL580: Through hollow shaft ø10 mm, clamping ring at A side, cable radial, stator coupling, IP65 / STEP (EIL580-TT10.5Lx.xxxxx.A)
- ZIP
- 1.23 MB
3D CAD - EIL580: Through hollow shaft ø12 mm, clamping ring at A side, cable radial, without stator coupling, IP65 / STEP (EIL580-TN12.5Rx.xxxxx.A)
- ZIP
- 1016.65 KB
3D CAD - EIL580: Through hollow shaft ø12 mm, clamping ring at A side, connector M12 radial, stator coupling, IP65 / STEP (EIL580-TT12.5Bx.xxxxx.A)
- ZIP
- 1.42 MB
