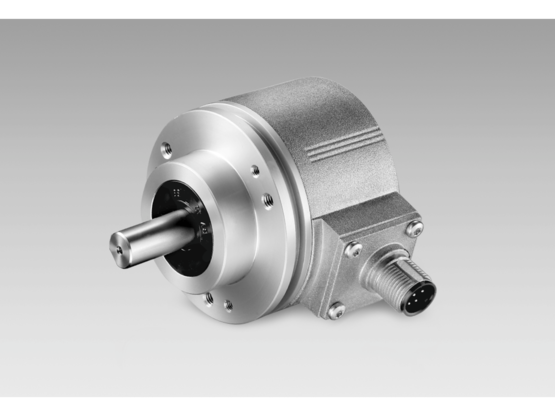

Baumer ExEIL580P-SC
Incremental encoders
- Size ø58 mm
- Precise optical sensing (interpolated)
- Output signal level programmable (TTL or HTL)
- Clamping flange
- Connection axial, radial or tangential
- Pulses per revolution 1...65536, programmable
- High resistance to shock and vibrations
- Option 0122, Explosion protection zone 22
| Voltage supply: | 4.75...30 VDC |
|---|---|
| Approval: | UL 508 / CSA 22.2 |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Programmable parameters: | Output level TTL/HTL Pulse number 1...65536 Zero pulse width 90°/180° Zero pulse position Signal sequence |
| Output stages: | TTL/RS422 HTL/push-pull |
| Output signals: | A+, B+, R+, A-, B-, R- |
| Output frequency: | ≤300 kHz (TTL) ≤160 kHz (HTL) |
| Sensing method: | Optical |
| Reference signal: | Zero pulse 90° or 180° |
| Reverse polarity protection: | Yes |
| Short-circuit proof: | Yes |
| Consumption w/o load: | ≤70 mA |
| Initializing time: | ≤30 ms after power on |
| Pulses per revolution: | 1 … 65536 |
| Duty cycle: | 45…55 % typical at 1024, 2048 ppr (further see table Duty cycle) |
| Connection: | Flange connector M12, 8-pin Flange connector M23, 12-pin Cable |
|---|---|
| Explosion protection: | II 3 D Ex tc IIIC T135°C Dc X (dust): see special conditions “X” |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 300 g, 6 ms |
| Relative humidity: | 90 % non-condensing |
| Ambient temperature: | -20...+60 °C |
| Material: | Housing: aluminium die-cast Flange: aluminium Solid shaft: stainless steel |
| Starting torque: | ≤0,015 Nm (+20 °C) |
| Operating speed: | ≤12000 rpm (+20 °C) ≤11000 rpm (+40 °C) ≤8000 rpm (+60 °C) |
| Protection DIN EN 60529: | IP 65 |
| Flange: | Clamping flange |
| Admitted shaft load: | ≤40 N axial ≤80 N radial |
| Shaft type: | ø10 x 20 mm, solid shaft with flat |
| Size (flange): | ø58 mm |
| Weight approx.: | 300 g |
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M23 radial, IP65 / STEP (EIL580-SC10.5Fx.xxxxx.A)
- ZIP
- 407.08 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M23 axial, IP65 / STEP (EIL580-SC10.5Dx.xxxxx.A)
- ZIP
- 415.95 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M12 radial, IP65 / STEP (EIL580-SC10.5Bx.xxxxx.A)
- ZIP
- 1.01 MB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M12 axial, IP65 / STEP (EIL580-SC10.5Ax.xxxxx.A)
- ZIP
- 1.1 MB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable tangential, IP65 / STEP (EIL580-SC10.5Px.xxxxx.A)
- ZIP
- 945.35 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable radial, IP65 / STEP (EIL580-SC10.5Rx.xxxxx.A)
- ZIP
- 825.47 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable axial, IP65 / STEP (EIL580-SC10.5Tx.xxxxx.A)
- ZIP
- 1.12 MB
