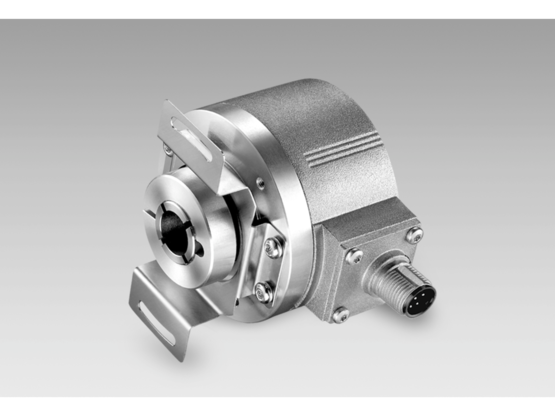

Baumer ExEIL580P-T

Baumer ExEIL580P-T

Incremental encoders

  • Size ø58 mm
  • Precise optical sensing (interpolated)
  • Output signal level programmable (TTL or HTL)
  • Through hollow shaft, ø8…15 mm
  • Connection radial or tangential
  • Pulses per revolution 1...65536, programmable
  • High resistance to shock and vibrations
  • Option 0122, Explosion protection zone 22
Voltage supply: 4.75...30 VDC
Approval: UL 508 / CSA 22.2
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
Programmable parameters: Output level TTL/HTL Pulse number 1...65536 Zero pulse width 90°/180° Zero pulse position Signal sequence
Output stages: TTL/RS422 HTL/push-pull
Output signals: A+, B+, R+, A-, B-, R-
Output frequency: ≤300 kHz (TTL) ≤160 kHz (HTL)
Sensing method: Optical
Reference signal: Zero pulse 90° or 180°
Reverse polarity protection: Yes
Short-circuit proof: Yes
Consumption w/o load: ≤70 mA
Initializing time: ≤30 ms after power on
Pulses per revolution: 1 … 65536
Duty cycle: 45…55 % typical at 1024, 2048 ppr (further see table Duty cycle)
Connection: Flange connector M12, 8-pin Flange connector M23, 12-pin Cable
Explosion protection: II 3 D Ex tc IIIC T135°C Dc X (dust): see special conditions “X”
Resistance: DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 250 g, 6 ms
Relative humidity: 90 % non-condensing
Ambient temperature: -20...+60 °C
Material: Housing: aluminium die-cast Flange: aluminium
Starting torque: ≤0,025 Nm (+20 °C)
Operating speed: ≤6000 rpm (+20 °C) ≤4500 rpm (+40 °C) ≤2500 rpm (+60 °C)
Protection DIN EN 60529: IP 65
Shaft type: ø8...15 mm (through hollow shaft) ø9.52 mm (through hollow shaft) ø12.7 mm (through hollow shaft)
Size (flange): ø58 mm
Weight approx.: 300 g
