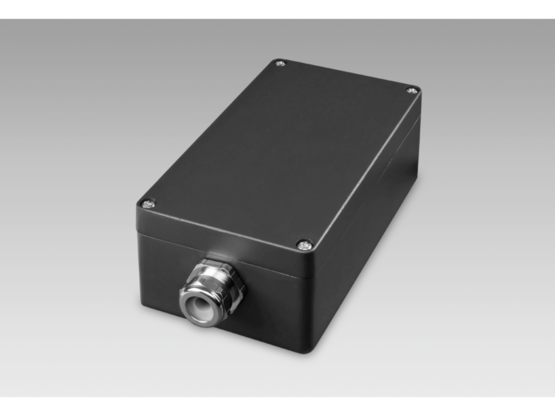

Baumer Fiber-optic transmitter in outdoor box: LWL-SBR
Signal Processing
- Transmission length up to 1500 m
- Converting standard square-wave signals into optical signals
- Transmission error detection via checksum (CRC)
- High-precision transmission of signals (Jitter <100 ns)
- Constant delay time <20 μs
- Automatic channel switchover in realtime upon failure of one fiber-optic channel
- Outdoor box with protection IP 66, IP 67
| Voltage supply: | 9...30 VDC |
|---|---|
| Transmission length: | ≤1500 m |
| Wave length: | ~820 nm |
| Start time: | <500 ms |
| Outputs: | Fiber1, Fiber2 |
| Input signals: | K1, K2, K0 + inverted Err + inverted |
| Inputs: | HTL, TTL |
| Consumption: | ≤300 mA |
| Housing type: | Mounting on standard rails according to EN 50022 |
|---|---|
| Connection: | 1x cable gland M16x1.5 1x cable gland M20x1.5 1x cable gland M32x1.5 Screw terminal connector 2x ST connector |
| Weight approx.: | 300 g |
| Ambient temperature: | -40...+85 °C |
| Protection DIN EN 60529: | IP 66/IP 67 |
| Dimensions W x H x L: | 122 x 81 x 220 mm |
| Material: | Housing: aluminium die-cast |
