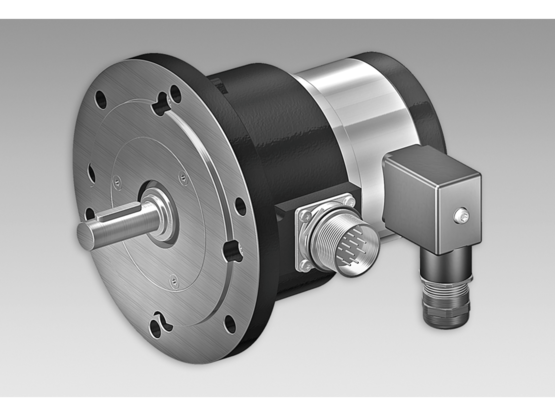

Baumer FOG 9 + GT 7
Incremental encoders - combination
- Compact, robust die-cast housing
- Flange connector with metal mating connector
- EURO flange B10 / solid shaft ø11 mm
- Temperature compensation of tacho voltage as standard
- Open circuit voltage 10...60 mV per rpm
| Voltage supply: | 9...30 VDC; 5 VDC ±5 % |
|---|---|
| Output stages: | HTL; TTL/RS422 |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Reference signal: | Zero pulse, width 90° |
| Duty cycle: | 40…60 % |
| Phase shift: | 90 ° ±20° |
| Pulses per revolution: | 100 … 5000 |
| Consumption w/o load: | ≤100 mA |
| Operating speed: | ≤10000 rpm |
|---|---|
| Operating torque typ.: | 6 Ncm |
| Rotor moment of inertia: | 160 gcm² |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Operating temperature: | -30...+100 °C -25...+100 °C (>3072 pulses) |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10...2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Connection: | Flange connector M23, 12-pin Screw terminal connector Connecting cable (option) |
| Weight approx.: | 1,3 kg (GT 7.08) 1,6 kg (GT 7.16) |
| Interference immunity: | EN 61000-6-2 |
| Emitted interference: | EN 61000-6-3 |
| Protection DIN EN 60529: | IP 55 |
| Flange: | EURO flange B10 |
| Admitted shaft load: | ≤200 N axial ≤300 N radial |
| Reversal tolerance: | ≤0,1 % |
| Linearity tolerance: | ≤0,15 % |
| Temperature coefficient: | ± 0,05 %/K (open-circuit) |
| Isolation class: | B |
| Calibration tolerance: | ±5 % |
| Climatic test: | Humid heat, constant (IEC 60068-2-3, Ca) |
| Performance: | GT 7.08: 0.3 W (speed ≥5000 rpm) GT 7.16: 0.6 W (speed ≥5000 rpm) |
| Armature-circuit time-constant: | <4 µs |
| Open-circuit voltage: | 10...60 mV per rpm |
| Size (flange): | ø115 mm |
| Shaft type: | ø11 mm solid shaft |
| Approval: | CE |
