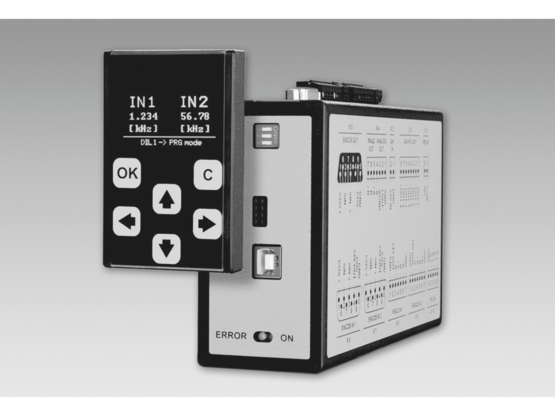

Baumer GMM240S
Speed switches
- SIL3 and PLe certification
- Monitoring of underspeed, overspeed, standstill and rotating direction
- Inputs for 1 SinCos encoder (SIL3/PLe) and 2 HTL/PNP control signals
- Safety related outputs and signal splitter
- Mounting to 35 mm DIN rail (according to EN 60715)
- USB interface for simple parametrization by the OS 6.0 operator surface
| DCavg (ISO 13849): | 97,95 % |
|---|---|
| λSD / λSU: | 1,93 * 10-6 h-1 / 4,64 * 10-8 h-1 |
| λDD / λDU: | 2,94 * 10-6 h-1 / 6,14 * 10-8 h-1 |
| Service interval: | Switch on/off for at least 1 times a year (at continuous operation) |
| Structure: | Dual-channel |
| Safety functions: | Equivalent to EN 61800-5-2 for SS1, SS2, SOS, SLS, SDl, SSM, SLI, SBC, STO, SMS (depending on the used encoder input signals) |
| SFF: | 98,77 % |
| PFH (IEC 61508 / EN 62061): | 3,76 * 10 -8h -1 |
| MTTFd (ISO 13849): | 38.1 years |
| Classification: | SIL3/PLe (depending on the used encoder input signals) |
| Category (ISO 13849): | 3 (HFT = 1) |
| Dimensions (W x H x D): | 50 x 100 (120) x 165 mm With programming unit GMI230S: 50 x 100 (120) x 180 mm |
|---|---|
| Approval: | CE SIL3/PLe EN ISO 13849-1, EN 61508, EN 62061 |
| Emitted interference: | EN 61000-6-3; EN 61000-6-4 |
| Interference immunity: | EN 61000-6-2; EN 61326-3-2 |
| Protection DIN EN 60529: | IP 20 |
| Operating temperature: | -20...+55 °C (without dew) |
| Storage temperature: | -25...+70 °C (without dew) |
| Weight approx.: | 390 g |
| Mounting type: | 35 mm DIN rail (according to EN 60715) |
| Connection: | Plug-in screw terminal 1.5 mm2 Connector D-SUB, female, 9-pin (SinCos input) Connector D-SUB, female, 9-pin (SinCos output) USB 1.0 / type B (female) |
| LED operating status: | Green = ready for use "ON" Yellow = "ERROR" |
| Control functions: | DIL switch: 1 x 3-pin |
| Status indicator: | LEDs |
| Input voltage: | 18...30 VDC |
| Consumption w/o load: | ~150 mA |
| Protective circuit input: | Reverse polarity protection, external fuse (2.5 A, medium time-lag) necessary |
| Residual ripple: | ≤10 % (24 VDC) |
| Encoder output voltage: | ~2 VDC less the input voltage |
| Protective circuit encoder supply: | Short-circuit-proof |
| Encoder output current: | ≤200 mA each encoder |
| Inputs: | 1x SinCos encoder (SIL3/PLe) 2x HTL/PNP control signals |
| Outputs (safety related): | 1x relay output 5...36 VDC (NO) 1x analogue output 4...20 mA 4x control output HTL |
| Signal splitter (safety related): | 1x SinCos splitter output 1x RS422 splitter output |
| Material: | Plastic |
