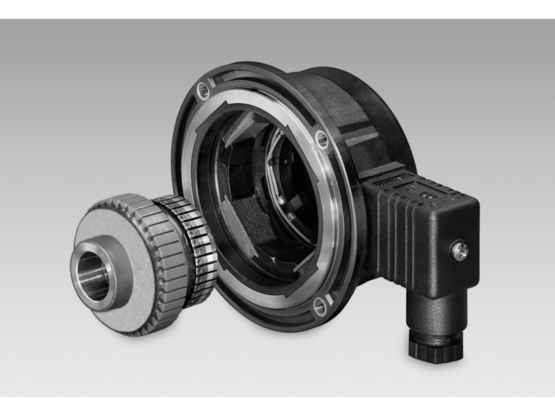

Baumer GT 7
Tachogenerators
- Temperature compensation of tacho voltage as standard
- Open circuit voltage 10...60 mV per rpm
- Blind hollow shaft ø12...16 mm
- High signal quality due to patented LongLife technology
- Low moment of inertia
- No auxiliary energy source required
| Reversal tolerance: | ≤0,1 % |
|---|---|
| Approval: | CE |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Open-circuit voltage: | 10...60 mV per rpm |
| Armature-circuit time-constant: | <4 µs |
| Performance: | GT 7.08: 0.3 W (speed ≥5000 rpm) GT 7.16: 0.6 W (speed ≥5000 rpm) |
| Climatic test: | Humid heat, constant (IEC 60068-2-3, Ca) |
| Calibration tolerance: | ±5 % |
| Isolation class: | B |
| Temperature coefficient: | ± 0,05 %/K (open-circuit) |
| Linearity tolerance: | ≤0,15 % |
| Weight approx.: | 110 g (GT 7.08) 180 g (GT 7.16) |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Operating temperature: | -30...+130 °C |
| Material: | Housing: stainless steel / plastic Shaft: stainless steel |
| Rotor moment of inertia: | 0,4 kgcm² (GT 7.08) 0,55 kgcm² (GT 7.16) |
| Torque: | 1,5 Ncm |
| Protection DIN EN 60529: | IP 55 |
| Shaft type: | ø12...16 mm (blind hollow shaft) |
| Size (flange): | ø85 mm |
| Connection: | Screw terminal connector Cable 0.6 m |
