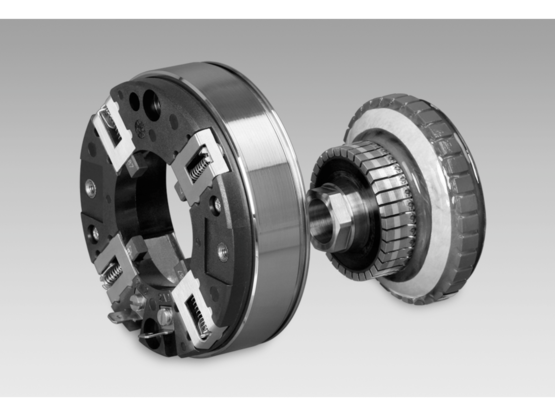

Baumer GT 9
Tachogenerators
- Low response time
- Open circuit voltage 10...20 mV per rpm
- Blind hollow shaft ø12...16 mm or cone shaft ø17 mm (1:10)
- High signal quality due to patented LongLife technology
- No auxiliary energy source required
| Reversal tolerance: | ≤0,1 % |
|---|---|
| Approval: | CE |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Open-circuit voltage: | 10...20 mV per rpm |
| Armature-circuit time-constant: | <9 µs |
| Performance: | 0.3 W (speed ≥5000 rpm) |
| Climatic test: | Humid heat, constant (IEC 60068-2-3, Ca) |
| Calibration tolerance: | ±5 % |
| Isolation class: | B |
| Temperature coefficient: | ± 0,05 %/K (open-circuit) |
| Linearity tolerance: | ≤0,15 % |
| Weight approx.: | 0,6 kg |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10...2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Operating temperature: | -30...+130 °C |
| Material: | Housing: stainless steel / plastic Shaft: stainless steel |
| Rotor moment of inertia: | 0,95 kgcm² |
| Torque: | 0,35 Ncm |
| Protection DIN EN 60529: | IP 00 IP 44 (with cover) |
| Shaft type: | ø12...16 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Size (flange): | ø89 mm |
| Connection: | Plug-in terminals |
