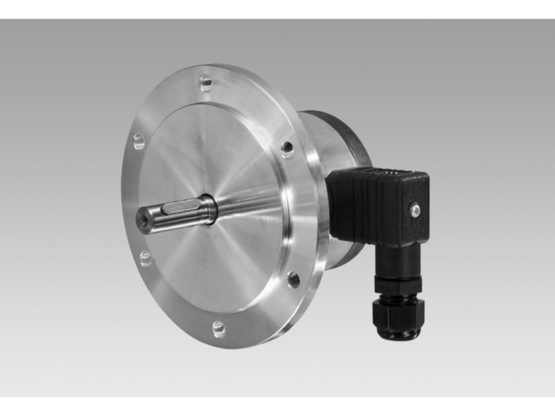

Baumer GTF 7

Baumer GTF 7

Tachogenerators

  • Open circuit voltage 10...60 mV per rpm
  • Solid shaft ø11 mm
  • EURO flange B10
  • High signal quality due to patented LongLife technology
  • Temperature compensation of tacho voltage as standard
  • Low moment of inertia
  • No auxiliary energy source required

Reversal tolerance: ≤0,1 %
Approval: CE
Open-circuit voltage: 10...60 mV per rpm
Armature-circuit time-constant: <4 µs
Performance: GTF 7.08: 0.3 W (speed ≥5000 rpm) GTF 7.16: 0.6 W (speed ≥5000 rpm)
Climatic test: Humid heat, constant (IEC 60068-2-3, Ca)
Calibration tolerance: ±5 %
Isolation class: B
Temperature coefficient: ± 0,05 %/K (open-circuit)
Linearity tolerance: ≤0,15 %
Weight approx.: 0,9 kg (GTF 7.08) 1,1 kg (GTF 7.16)
Resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms
Operating temperature: -30...+130 °C
Material: Housing: stainless steel / plastic Shaft: stainless steel
Admitted shaft load: ≤100 N axial ≤200 N radial
Rotor moment of inertia: 0,4 kgcm² (GTF 7.08) 0,6 kgcm² (GTF 7.16)
Torque: 1,5 Ncm
Protection DIN EN 60529: IP 55
Flange: EURO flange B10
Shaft type: ø11 mm solid shaft
Size (flange): ø115 mm
Connection: Screw terminal connector

Data sheet - GTF 7

  • PDF
  • 323.18 KB
Download

Data sheet - GTF 7

  • PDF
  • 340.55 KB
Download

Data sheet - GTF 7

  • PDF
  • 337.31 KB
Download

Declarations of conformity - Tachogenerators

  • PDF
  • 256.05 KB
Download

Assembly instructions - GTF 7

  • PDF
  • 1.99 MB
Download
