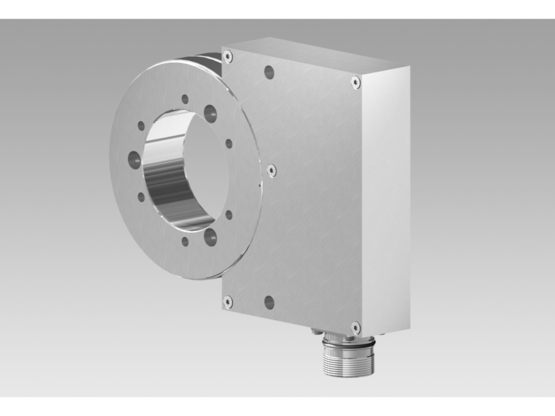

Baumer HDmag  MHAP 100

Baumer HDmag MHAP 100

Encoders without bearings - absolute

  • Absolute encoder with magnetic sensing and without bearings
  • Sensor head with integrated FPGA signal processing
  • Absolute resolution max. 17 bit singleturn
  • Additional incremental output
  • Robust and wearless
  • Electronics is fully encapsulated
  • High protection
  • Large tolerances: axial ±1 mm, radial max. 0.5 mm
  • Simple mounting, easy adaptation
  • Several mounting possibilities

Interference immunity: EN 61000-6-2
Emitted interference: EN 61000-6-3
Approval: CE UL approval / E217823
Sensor head: FPGA signal processing
Additional outputs: Square-wave TTL (RS422) Square-wave universal HTL/TTL SinCos
Code sequence: CW default
Code: Gray or binary
Sensing method: Magnetic
Steps per revolution: ≤131072 / 17 bit
Function: Singleturn
Interface: SSI
Size (flange): ø101.3 mm
Shaft type: ø16...80 mm (through hollow shaft)
Axial tolerance: ±1 mm (wheel/head)
Connection: Flange connector M23, 17-pin
Accuracy of magnetic measure: ±400 ″
Resistance: IEC 60068-2-6 Vibration 30 g, 55...2000 Hz IEC 60068-2-27 Shock 300 g, 2 ms
Operating temperature: -20...+85 °C
Material: Housing sensing head: aluminium alloy Wheel: stainless steel (1.4104)
Operating speed: ≤8000 rpm
Protection DIN EN 60529: IP 67 (head) IP 68 (wheel)
Radial tolerance: 0,1…0,5 mm (wheel/head)
Voltage supply: 4.5...30 VDC
Bandwidth: 400 kHz (-3 dB)
Output stages: HTL TTL/RS422
Output signals: A+, A-, B+, B-
Output frequency: ≤2 MHz
Sensing method: Magnetic
Duty cycle: 40…60 %
Phase shift: 90 ° ±10°
Pulses per revolution: 1 … 131072
Consumption w/o load: ≤300 mA
Voltage supply: 4.5...30 VDC
Consumption w/o load: ≤300 mA
DC offset: ≤20 mV
Harmonics typ.: -40 dB
Difference of SinCos amplitude: ≤20 mV
Output stages: SinCos 1 Vpp
Output signals: A+, A-, B+, B-
Sensing method: Magnetic
Phase shift: 90 ° ±5°
Sinewave cycles per revolution: 1 … 8192
Voltage supply: 4.5...30 VDC
