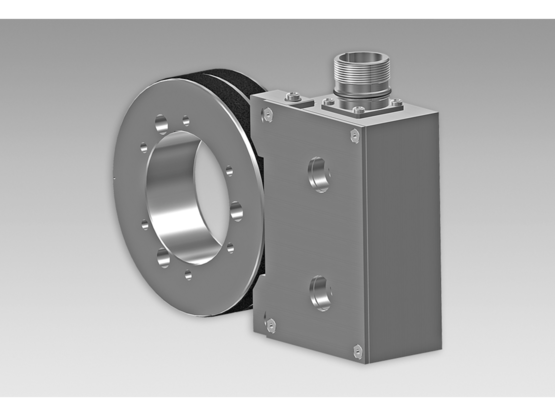

Baumer HDmag  MHGE 100

Baumer HDmag MHGE 100

Encoders without bearings - incremental

  • Robust and wearless
  • High protection through fully encapsulated electronics
  • Large tolerances: axial ±3 mm, radial max. 2.2 mm
  • Very compact dimensions
  • Simple mounting, easy adaptation

Interference immunity: EN 61000-6-2
Emitted interference: EN 61000-6-3
Approval: CE UL approval / E217823 Option: DNV approval
Size (flange): ø99,9 mm
Sensor head: Standard signal processing
DC offset: ≤20 mV
Harmonics typ.: -40 dB
Difference of SinCos amplitude: ≤20 mV
Output stages: SinCos 1 Vpp
Shaft type: ø16...80 mm (through hollow shaft)
Axial tolerance: ±3 mm (wheel/head)
Radial tolerance: 0,1…2,2 mm (wheel/head)
Protection DIN EN 60529: IP 67 (head) IP 68 (wheel)
Operating speed: ≤8000 rpm
Material: Housing sensing head: aluminium alloy Wheel: stainless steel (1.4104, option DNV: 1.4313)
Operating temperature: -40...+100 °C
Resistance: IEC 60068-2-6 Vibration 30 g, 55-2000 Hz IEC 60068-2-27 Shock 300 g, 2 ms
Accuracy of magnetic measure: ±300 ″
Output signals: A+, B+, R+, A-, B-, R-
Sensing method: Magnetic
Voltage supply: 4.75...30 VDC
Consumption w/o load: ≤70 mA
Pulses per revolution: 64 … 4096
Phase shift: 90 ° ±10°
Duty cycle: 40…60 %
Reference signal: Zero pulse, width 90°
Sensing method: Magnetic
Output frequency: ≤300 kHz
Output signals: A+, B+, R+, A-, B-, R-
Output stages: HTL, TTL/RS422
Voltage supply: 5 VDC
Consumption w/o load: ≤70 mA
Sinewave cycles per revolution: 64
Phase shift: 90 ° ±5°
Reference signal: Zero pulse, width 90°
Connection: Flange connector M23, 12-pin Terminal box
