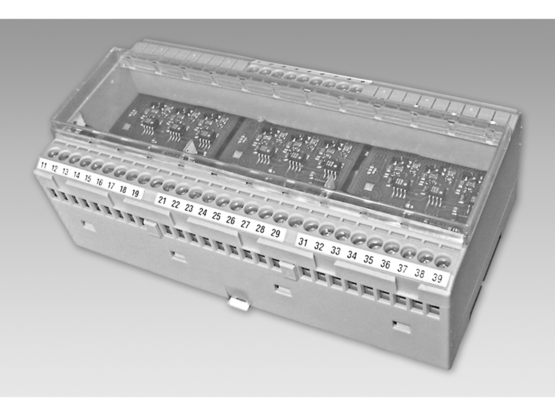

Baumer HEAG 150
Signal Processing
- Signal level shifting from HTL → TTL or TTL → HTL
- Isolating signal cables to multiple receivers to avoid earth loops
- Regenerating of signals when transmitting over long distance
- 1 input unit and 3 output units
| Voltage supply: | Output unit HTL: 9...26 VDC Output unit TTL: 5 VDC ±5 % Output unit TTL (R): 9...26 VDC |
|---|---|
| Approval: | CE |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Output signals: | K1, K2, K0 + inverted |
| Load current (outputs): | HTL: 60 mA (average), 100 mA (peak) TTL: 25 mA (average), 75 mA (peak) TTL (R): 25 mA (average), 75 mA (peak) |
| Outputs: | HTL TTL TTL (R) |
| Input frequency: | ≤120 kHz (≤200 kHz if output unit 1,2,3 = TTL) |
| Input signals: | K1, K2, K0 + inverted |
| Inputs: | HTL, TTL |
| Input current: | 15 mA |
| Mounting type: | DIN rail housing EN 50022 |
|---|---|
| Operating temperature: | -20...+50 °C |
| Protection DIN EN 60529: | IP 20 |
| Dimensions (W x H x D): | 150 x 75 x 55 mm |
| Connection: | Screw terminal connector |
