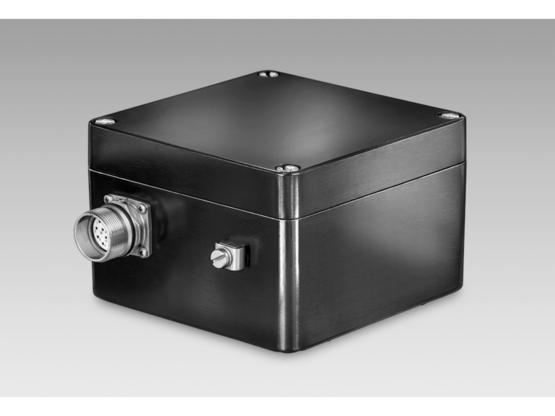

Baumer HEAG 160
Signal Processing
- Converting of SinCos signals into multiplied SinCos signals
- Additional interpolation of HTL or TTL signals (multiplying or dividing)
- Oversampling with 24 MHz
- Digitally pre-filter
- Very high output frequency possible
| Voltage supply: | 5 VDC ±5 % 10...30 VDC |
|---|---|
| Interpolation factor for TTL output (dividing): | 1/2...1/2048 |
| Interpolation factor for TTL output (multiplying): | 1…2048 |
| Interpolation factor for HTL output (dividing): | 1/2...1/2048 |
| Interpolation factor for HTL output (multiplying): | 1…2048 |
| Interpolation factor for SinCos output (multiplying): | 1…128 |
| Amplitude resolution: | 12 bit |
| Output frequency: | ≤2 MHz (HTL) ≤5 MHz (TTL) ≤600 kHz (SinCos) |
| Output signals: | A+, B+, R+, A-, B-, R- Option: A+, B+, R+, A-, B-, R-, Error- |
| Outputs: | SinCos + TTL SinCos + HTL Error output |
| Input signals: | A+, A-, B+, B-, R+, R- |
| Inputs: | SinCos 2x SinCos |
| Consumption: | ≤500 mA (5 VDC) ≤300 mA (10...30 VDC) |
| Weight approx.: | 1 kg |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 1 g, 50-2000 Hz IEC 60068-2-27 Shock 30 g, 11 ms |
| Operating temperature: | 0...+50 °C |
| Protection DIN EN 60529: | IP 65 |
| Dimensions W x H x L: | 122 x 122 x 80 mm |
| Connection: | Connector M23, 12-pin Connector, 3-pin, external voltage supply |
