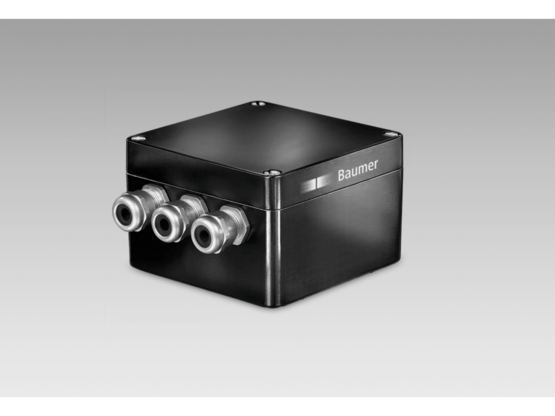

Baumer HEAG 171, HEAG 172
Signal Processing
- For high interference locations
- Converting standard square-wave signals into fiber-optic signals
- Each channel is coupled onto fiber-optic easy-to-fit plug
- 3 different plug versions available
- Delay time over a 100 m length of fiber-optic is 1 µs
- Except of POF all fiber optic cable usable, e. g. PCF 200 μm, silica fiber 50 and 62.5 μm
| Voltage supply: | HEAG 171: 9...26 VDC; 5 VDC ±5 % HEAG 172: 9...26 VDC |
|---|---|
| Approval: | CE |
| Transmission length: | ≤300 m |
| Transmission frequency: | ≤250 kHz |
| Output signals: | Fiber-optic 1, 2, 3 and 4 |
| Outputs: | 4 x fiber-optic |
| Input signals: | K1, K2, K3, K4 + inverted |
| Inputs: | HEAG 171: 4 x TTL HEAG 172: 4 x HTL |
| Consumption: | ≤200 mA |
| Dimensions W x H x L: | 122 x 122 x 80 mm |
|---|---|
| Protection DIN EN 60529: | IP 65 |
| Operating temperature: | -20...+70 °C (without dew) |
| Connection: | 3x cable gland M20x1.5 4x cable gland M16x1.5 |
