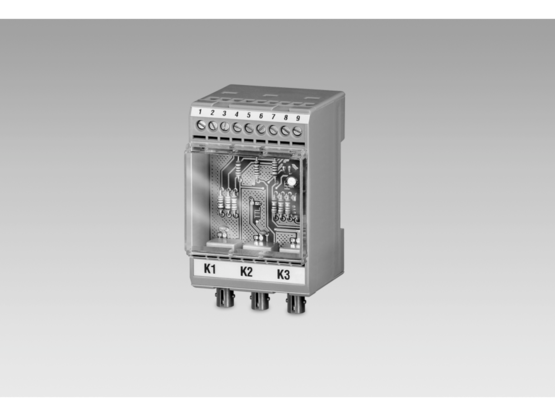

Baumer HEAG 173, HEAG 174
Signal Processing
- For high interference locations
- Each channel is coupled onto fiber-optic easy-to-fit plug
- Reconversion of optical to electrical signals in the receiver control cabinet
- 3 different plug versions available
- Delay time over a 100 m length of fiber-optic is 1 µs
- Except of POF all fiber optic cable usable, e. g. PCF 200 μm, silica fiber 50 and 62.5 μm
| Voltage supply: | HEAG 173: 5 VDC ±5 % HEAG 174: 9...26 VDC |
|---|---|
| Approval: | CE |
| Transmission length: | ≤300 m |
| Transmission frequency: | ≤250 kHz |
| Output signals: | K1, K2, K3 + inverted |
| Outputs: | HEAG 173: 3 x TTL HEAG 174: 3 x HTL |
| Input signals: | Fiber-optic 1, 2 and 3 |
| Inputs: | 3 x fiber-optic |
| Consumption: | ≤60 mA |
| Dimensions W x H x L: | 50 x 75 x 55 mm |
|---|---|
| Protection DIN EN 60529: | IP 20 |
| Operating temperature: | -20...+50 °C (without dew) |
| Connection: | Screw terminal connector 3x connector (VL, ST or SMA) |
