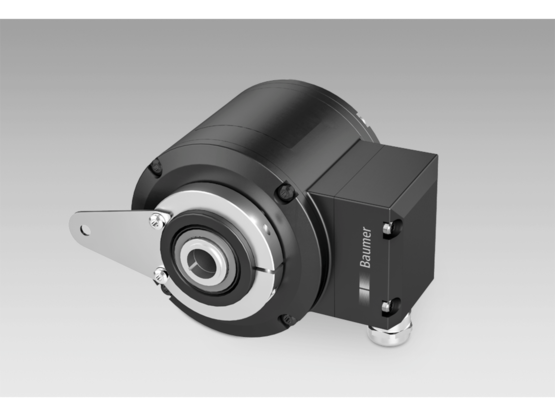

Baumer HMG10-B - Profibus DP

Baumer HMG10-B - Profibus DP

Absolute encoders

  • Magnetic sensing method
  • Function display via LEDs
  • Multiturn sensing with Energy Harvesting technology, without gear or battery
  • Two-sided bearing system with hybrid bearings
  • Special protection against corrosion C5-M

Voltage supply: 10...30 VDC
Approval: CE UL approval / E256710
Status indicator: DUO-LED (bus connecting box) 4 LEDs in device back side
Diagnostic function: Position or parameter error
Programmable parameters: Steps per revolution Number of revolutions Preset, scaling, rotating direction
Emitted interference: EN 61000-6-3
Interference immunity: EN 61000-6-2
Sensing method: Magnetic
Additional outputs: Square-wave TTL/HTL,TTL/RS422
Number of revolutions: 65536 / 16 bit
Steps per revolution: 8192 / 13 bit
Short-circuit proof: Yes
Consumption w/o load: ≤200 mA
Initializing time: ≤500 ms after power on
Interface: Profibus-DPV0/V2
Function: Multiturn
Transmission rate: 9,6 … 12000 kBaud
Device adress: Rotary switches in bus connecting box
Rotor moment of inertia: 950 gcm²
Admitted shaft load: ≤450 N axial ≤650 N radial
Material: Housing: aluminium alloy Shaft: stainless steel
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions C5-M (CX) according to ISO 12944-2
Operating temperature: -40...+85 °C
Relative humidity: 95 % non-condensing
Resistance: IEC 60068-2-6 Vibration 30 g, 10-2000 Hz IEC 60068-2-27 Shock 400 g, 1 ms
Weight approx.: 2,2 kg (depending on version)
Operating torque typ.: 10 Ncm
Range of switching speed: ns (off) = ±2...6000 rpm
Operating speed: ≤6000 rpm
Switching accuracy: ± 2 % (or 1 Digit)
Switching outputs: 1 output (Open collector, solid state relay on request)
Output switching capacity: 30 VDC; ≤100 mA
Switching delay time: ≤20 ms
Size (flange): ø105 mm
Shaft type: ø16...20 mm (blind hollow shaft) ø17 mm (cone shaft 1:10)
Flange: Support plate, 360° freely positionable
Protection DIN EN 60529: IP 66/IP 67
Connection: Bus connecting box Terminal box incremental
