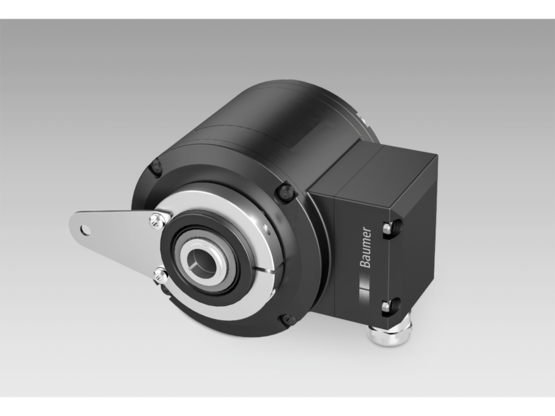

Baumer HMG10-B - SSI
Absolute encoders
- Magnetic sensing method
- Function display via LEDs
- Multiturn sensing with Energy Harvesting technology, without gear or battery
- Two-sided bearing system with hybrid bearings
- Special protection against corrosion C5-M
| Voltage supply: | 4.75...30 VDC |
|---|---|
| Approval: | CE UL approval / E256710 |
| Status indicator: | 4 LEDs in device back side |
| Diagnostic function: | Function control |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Input signals: | SSI clock, PRESET, rotating direction |
| Code sequence: | CW (factory setting) |
| Code: | Gray or binary |
| Sensing method: | Magnetic |
| Additional outputs: | Square-wave TTL/HTL,TTL/RS422 |
| Short-circuit proof: | Yes |
| Consumption w/o load: | ≤100 mA (SSI) |
| Initializing time: | ≤500 ms after power on |
| Interface: | SSI |
| Function: | Multiturn |
| Steps per revolution: | 1048576 / 20 bit |
| Number of revolutions: | 1048576 / 20 bit |
| Rotor moment of inertia: | 950 gcm² |
|---|---|
| Admitted shaft load: | ≤450 N axial ≤650 N radial |
| Material: | Housing: aluminium alloy Shaft: stainless steel |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C5-M (CX) according to ISO 12944-2 |
| Operating temperature: | -40...+95 °C |
| Relative humidity: | 95 % non-condensing |
| Resistance: | IEC 60068-2-6 Vibration 30 g, 10-2000 Hz IEC 60068-2-27 Shock 400 g, 1 ms |
| Weight approx.: | 1,6 kg (depending on version) |
| Operating torque typ.: | 10 Ncm |
| Range of switching speed: | ns (off) = ±2...12000 rpm |
| Operating speed: | ≤12000 rpm |
| Switching accuracy: | ± 2 % (or 1 Digit) |
| Switching outputs: | 1 output (Open collector, solid state relay on request) |
| Output switching capacity: | 30 VDC; ≤100 mA |
| Switching delay time: | ≤20 ms |
| Size (flange): | ø105 mm |
| Shaft type: | ø16...20 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Flange: | Support plate, 360° freely positionable |
| Protection DIN EN 60529: | IP 66/IP 67 |
| Connection: | Terminal box Flange connector M23 |
3D CAD data - HMG10 SSI, blind hollow shaft ø16 mm, 2x terminal box with cable gland M20 (HMG10x-BHx.6Mxx.xxxxxx)
- ZIP
- 477.37 KB
