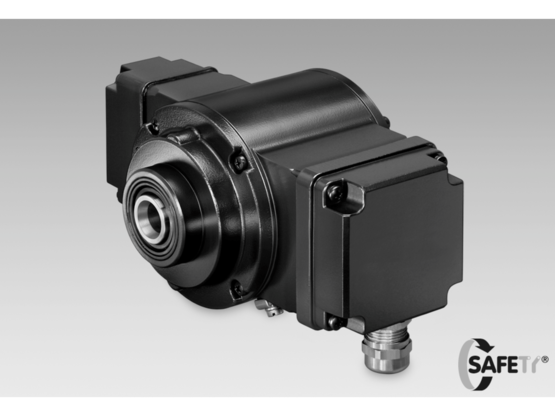

Baumer HOG 10 + DSL
Incremental encoders - combination
- Freely programmable on and off switching speed
- Programming via included software (RS485 interface)
- Logic level HTL or TTL
- 512…2500 pulses per revolution
- Blind hollow shaft ø16 mm
- DSL.R: 3 outputs speed controlled (independent transistor outputs)
- DSL.E: 2 outputs speed controlled and 1 control output
| Voltage supply: | With DSL.R: 15...30 VDC With DSL.E: 9...30 VDC |
|---|---|
| Consumption w/o load: | ≤200 mA |
| Shaft insulation: | Suitable up to 2.8 kV |
| Material: | Housing: aluminium Shaft: stainless steel |
|---|---|
| Rotor moment of inertia: | 340 gcm² |
| Operating torque: | ≤2 Ncm |
| Range of switching speed (ns): | Pulses = 512: ±16...6000 rpm Pulses = 1024: ±8...6000 rpm Pulses = 2048: ±4...3500 rpm Pulses = 2500: ±3...2900 rpm |
| Speed (n): | ≤6000 rpm |
| Protection DIN EN 60529: | IP 66 |
| Operating temperature: | -30...+85 °C |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10...2000 Hz IEC 60068-2-27 Shock 200 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust) |
| Connection: | Terminal box |
| Weight approx.: | 3,1 kg |
| Interference immunity: | EN 61000-6-2 |
| Emitted interference: | EN 61000-6-3 |
| Admitted shaft load: | ≤450 N axial ≤600 N radial |
| Shaft type: | ø16 mm (blind hollow shaft) |
| Pulses per revolution: | 512 … 2500 |
| Phase shift: | 90 ° ±20° |
| Duty cycle: | 40…60 % |
| Reference signal: | Zero pulse, width 90° |
| Output frequency: | ≤120 kHz |
| Output signals: | K1, K2, K0 + inverted |
| Output stages: | HTL TTL/RS422 |
| Sensing method: | Optical |
| Interface: | RS485 |
| Switching accuracy: | ± 2 % (or Digit) |
| Switching outputs: | With DSL.R: 3 outputs, speed control With DSL.E: 2 outputs, speed control and 1 control output |
| Output switching capacity: | With DSL.R: 12 VDC; ≤40 mA With DSL.E: 5...230 VAC/VDC; 5...250 mA |
| Switching delay time: | ≤40 ms |
| Size (flange): | ø105 mm |
| Approval: | CE |
