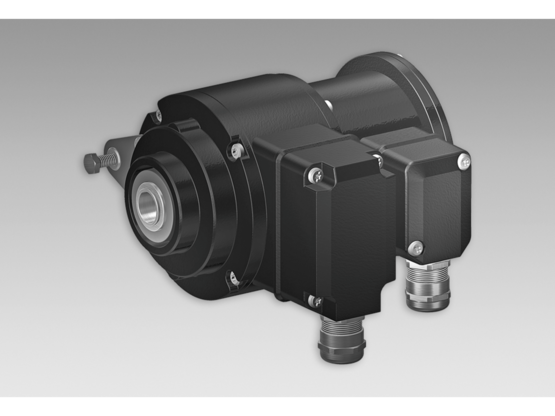

Baumer HOG 10 + ESL 93
Incremental encoders - combination
- TTL output driver for cable length up to 550 m
- Electronic speed monitoring
- Circuit breaker with up to three selectable threshold speeds
- Hybrid bearing for extended service life
- Terminal boxes, turn by 180°
| Shaft insulation: | Suitable up to 2.8 kV |
|---|---|
| Interference immunity: | EN 61000-6-2 |
| Emitted interference: | EN 61000-6-3 |
| Operating torque typ.: | 6 Ncm |
|---|---|
| Range of switching speed (ns): | 3x 200...5000 rpm |
| Operating speed: | ≤5000 rpm |
| Protection DIN EN 60529: | IP 66 |
| Admitted shaft load: | ≤450 N axial, ≤600 N radial |
| Shaft type: | ø16...20 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Rotor moment of inertia: | 680 gcm² |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Operating temperature: | -20...+85 °C |
| Resistance: | IEC 60068-2-6 Vibration 5 g, 10...2000 Hz IEC 60068-2-27 Shock 50 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Shaft insulation: | 2,8 kV |
| Transmission length: | ≤350 m at 100 kHz (HTL-P) ≤550 m at 100 kHz (TTL) |
| Connection: | 2x terminal box 3x terminal box (with option M) |
| Weight approx.: | 2,3 kg 2,5 kg (with option M) |
| Size (flange): | ø105 mm |
| Switching delay time: | ≤40 ms |
| Voltage supply: | 9...30 VDC; 5 VDC ±5 % |
| Consumption w/o load: | ≤100 mA |
| Pulses per revolution: | 300 … 5000 |
| Phase shift: | 90 ° ±20° |
| Duty cycle: | 40…60 % |
| Reference signal: | Zero pulse, width 90° |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Output stages: | HTL, TTL/RS422 |
| Voltage supply: | 12 VDC ±10 % |
| Consumption w/o load: | ≤5 mA |
| Switching accuracy: | ± 4 % (≤1500 rpm) ± 2 % (>1500 rpm) |
| Switching hysteresis: | = 30 % of switching speed |
| Switching outputs: | 3 outputs, speed control |
| Current each output: | 40 mA (DC) |
| Approval: | CE |
