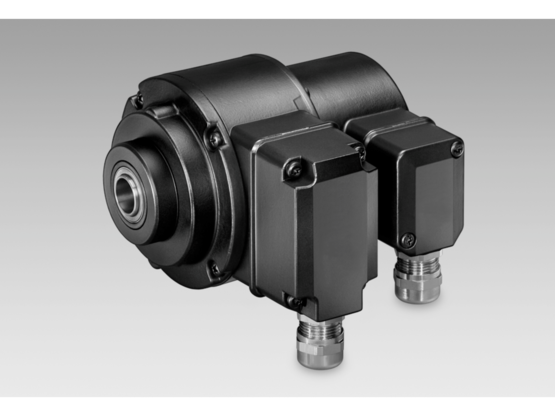

Baumer HOG 10 + FSL
Incremental encoders - combination
- TTL output driver for cable length up to 550 m
- Mechanical speed monitoring based on centrifugal force
- Hybrid bearing for extended service life
- Terminal boxes, turn by 180°
| Shaft insulation: | Suitable up to 2.8 kV |
|---|---|
| Transmission length: | ≤350 m at 100 kHz (HTL-P) ≤550 m at 100 kHz (TTL) |
| Interference immunity: | EN 61000-6-2 |
| Emitted interference: | EN 61000-6-3 |
| Approval: | CE |
| Speed (n): | ≤1,25 · ns |
|---|---|
| Protection DIN EN 60529: | IP 66 |
| Admitted shaft load: | ≤450 N axial ≤600 N radial |
| Shaft type: | ø16...20 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Size (flange): | ø105 mm |
| Range of switching speed (ns): | 850...4500 rpm (Δn = 2 rpm/s) |
| Operating torque typ.: | 6 Ncm |
| Rotor moment of inertia: | 400 gcm² |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Operating temperature: | -40...+100 °C -25...+100 °C (>3072 pulses) -50...+100 °C (optional) |
| Resistance: | IEC 60068-2-6 Vibration 5 g, 10...2000 Hz IEC 60068-2-27 Shock 50 g, 11 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Connection: | 2x terminal box 3x terminal box (with option M) |
| Minimum switching current: | 50 mA |
| Output switching capacity: | ≤6 A / 230 VAC; ≤1 A / 125 VDC |
| Switching outputs: | 1 output, speed control |
| Voltage supply: | 9...30 VDC; 5 VDC ±5 % |
| Consumption w/o load: | ≤100 mA |
| Pulses per revolution: | 300 … 5000 |
| Phase shift: | 90 ° ±20° |
| Duty cycle: | 40…60 % |
| Reference signal: | Zero pulse, width 90° |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Sensing method: | Optical |
| Switching accuracy: | ± 4 % (Δn = 2 rpm/s); 20 % (Δn = 1500 rpm/s) |
| Switching deviation: | ≤3 % (cw-ccw rotation) |
| Switching hysteresis: | 40 % of switching speed |
| Weight approx.: | 2,2 kg 2,4 kg (with option M) |
