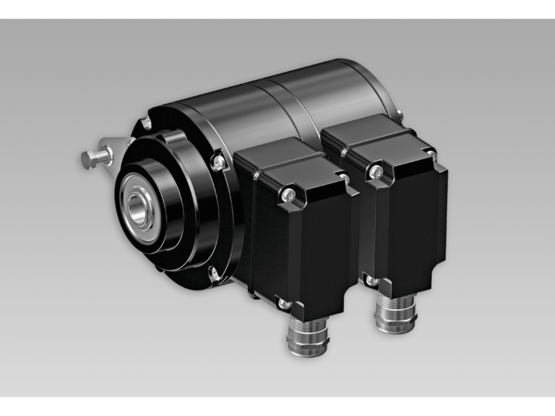

Baumer HOG 10 G
Incremental encoders - combination
- Twin encoder featuring two separate systems
- TTL output driver for cable length up to 550 m
- Very high resistance to shock and vibrations
- Hybrid bearing for extended service life
- Large terminal boxes, turn by 180°
| Voltage supply: | 9...30 VDC 5 VDC ±5 % |
|---|---|
| Approval: | CE UL approval / E217823 |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Transmission length: | ≤350 m at 100 kHz (HTL-P) ≤550 m at 100 kHz (TTL) |
| Shaft insulation: | Suitable up to 2.8 kV |
| Sensing method: | Optical |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Consumption w/o load: | ≤100 mA |
| Pulses per revolution: | 300 … 5000 |
| Phase shift: | 90 ° ±20° |
| Duty cycle: | 40…60 % |
| Reference signal: | Zero pulse, width 90° |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Connection: | 2x terminal box 4x terminal box (with option M) |
|---|---|
| Explosion protection: | II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust) |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Resistance: | IEC 60068-2-6 Vibration 20 g, 10...2000 Hz IEC 60068-2-27 Shock 300 g, 6 ms |
| Operating temperature: | -40...+100 °C -25...+100 °C (>3072 pulses) |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Rotor moment of inertia: | 340 gcm² |
| Operating torque typ.: | 6 Ncm |
| Operating speed: | ≤6000 rpm (mechanical) |
| Protection DIN EN 60529: | IP 66 |
| Admitted shaft load: | ≤450 N axial ≤600 N radial |
| Shaft type: | ø16...20 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Size (flange): | ø105 mm |
| Weight approx.: | 2,9 kg 3,3 kg (with option M) |
