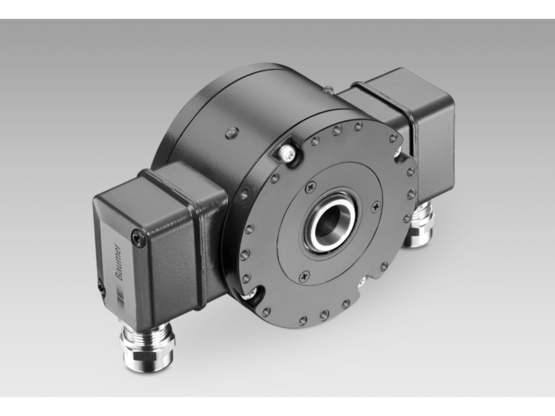

Baumer HOG 86 M
Incremental encoders
- Robust, compact housing
- Two bearings with large distance, one at each end
- High shaft load up to 450 N
- Shaft insulation up to 2.8 kV
- Highest operating speed 10000 rpm
- Terminal boxes, turn by 180°
- Redundant sensing
| Voltage supply: | 9...30 VDC 5 VDC ±5 % |
|---|---|
| Approval: | CE UL/CSA |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Transmission length: | ≤350 m at 100 kHz (HTL-P) ≤550 m at 100 kHz (TTL) |
| Shaft insulation: | 2,8 kV |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Sensing method: | Optical |
| Consumption w/o load: | ≤100 mA |
| Pulses per revolution: | 500 … 5000 |
| Phase shift: | 90 ° ±20° |
| Duty cycle: | 45…55 % 40…60 % (>3072 pulses) |
| Reference signal: | Zero pulse, width 90° |
| Operating principle: | Redundant sensing |
| Material: | Housing: aluminium Shaft: stainless steel |
|---|---|
| Operating temperature: | -40...+100 °C -25...+100 °C (>3072 pulses) |
| Resistance: | IEC 60068-2-6 Vibration 20 g, 10...2000 Hz IEC 60068-2-27 Shock 250 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust) |
| Connection: | 2x terminal box |
| Rotor moment of inertia: | 160 gcm² |
| Operating torque: | ≤6 Ncm |
| Operating speed: | ≤10000 rpm (mechanical) |
| Protection DIN EN 60529: | IP 66 |
| Motor shaft tolerance: | ±0,2 mm radial |
| Admitted shaft load: | ≤350 N axial ≤450 N radial |
| Shaft type: | ø12...16 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Size (flange): | ø99 mm |
| Weight approx.: | 1,4 kg |
3D CAD - HOG 86.2 M, EMS, 2 terminal box radial, hybrid bearing, shaft diameter 16 mm / STEP
- ZIP
- 1.73 MB
