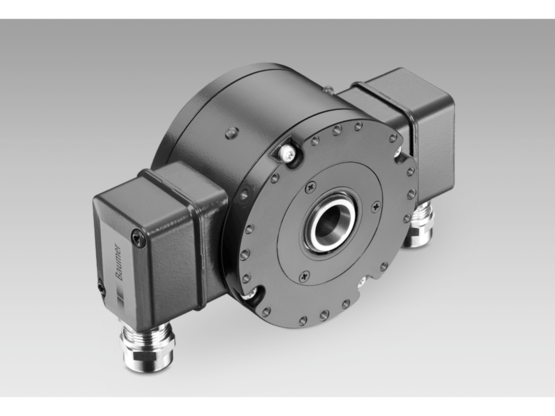

Baumer HOG 86 + DSL
Incremental encoders - combination
- Robust, compact housing
- Hybrid bearing for extended service life
- 3 switching outputs speed controlled (independent transistor outputs)
- Freely programmable on and off switching speed
- Programming via included software (RS485 interface)
- Output stage HTL or TTL
| Approval: | CE |
|---|---|
| Emitted interference: | EN 61000-6-3 |
| Consumption w/o load: | ≤200 mA |
| Interference immunity: | EN 61000-6-2 |
| Voltage supply: | 15...30 VDC |
| Reference signal: | Zero pulse, width 90° |
|---|---|
| Range of switching speed (ns): | Pulses = 512: ±16...6000 rpm Pulses = 1024: ±8...6000 rpm Pulses = 2048: ±4...3500 rpm Pulses = 2500: ±3...2900 rpm |
| Output frequency: | ≤120 kHz |
| Output signals: | K1, K2, K0 + inverted |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Sensing method: | Optical |
| Shaft insulation: | 2,8 kV |
| Transmission length: | ≤350 m at 100 kHz (HTL-P) ≤550 m at 100 kHz (TTL) |
| Interface: | RS485 |
| Switching accuracy: | ± 2 % (or Digit) |
| Switching outputs: | 3 outputs, speed control |
| Speed (n): | ≤6000 rpm |
| Admitted shaft load: | ≤350 N axial ≤450 N radial |
| Protection DIN EN 60529: | IP 66 |
| Duty cycle: | 45…55 % |
| Phase shift: | 90 ° ±20° |
| Pulses per revolution: | 512 … 2500 |
| Output switching capacity: | 12 VDC ≤40 mA |
| Switching delay time: | ≤40 ms |
| Size (flange): | ø99 mm |
| Connection: | 2x terminal box |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Resistance: | IEC 60068-2-6 Vibration 15 g, 10...2000 Hz IEC 60068-2-27 Shock 250 g, 6 ms |
| Operating temperature: | -30...+85 °C |
| Material: | Housing: aluminium, coated Shaft: stainless steel |
| Motor shaft tolerance: | ±0,2 mm radial |
| Rotor moment of inertia: | 160 gcm² |
| Operating torque: | ≤6 Ncm |
| Shaft type: | ø16 mm (blind hollow shaft) |
| Weight approx.: | 1,4 kg |
