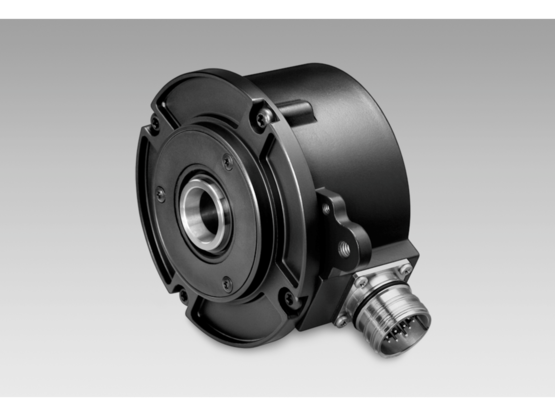

Baumer HOG 9
Incremental encoders
- Optical sensing method
- Output stage HTL with power linedriver
- TTL output driver for cable length up to 550 m
- Operating temperature up to +100 °C
- Hybrid bearing for extended service life
| Voltage supply: | 9...30 VDC 5 VDC ±5 % |
|---|---|
| Approval: | CE UL approval / E217823 |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Output signals: | K1, K2, K0 + inverted |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Sensing method: | Optical |
| Reference signal: | Zero pulse, width 90° |
| Duty cycle: | 40…60 % |
| Phase shift: | 90 ° ±20° |
| Pulses per revolution: | 300 … 5000 |
| Consumption w/o load: | ≤100 mA |
| Operating temperature: | -30...+100 °C -25...+100 °C (>3072 pulses) |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 17 g, 10...2000 Hz IEC 60068-2-27 Shock 275 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIB T135°C Dc (dust) |
| Connection: | Flange connector M23, 12-pin |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Rotor moment of inertia: | 160 gcm² |
| Operating torque typ.: | 6 Ncm |
| Operating speed: | ≤10000 rpm (mechanical) |
| Protection DIN EN 60529: | IP 56 |
| Admitted shaft load: | ≤400 N axial ≤500 N radial |
| Shaft type: | ø12...16 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Size (flange): | ø97 mm |
| Weight approx.: | 700 g |
