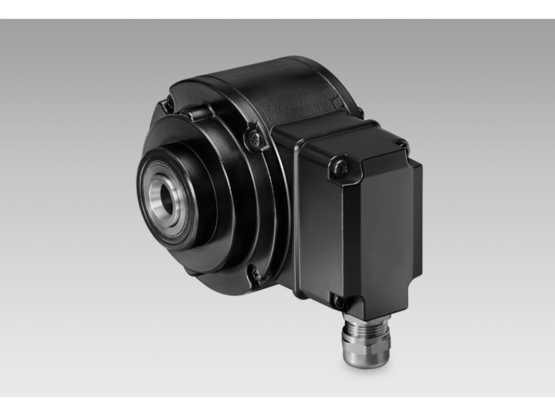

Baumer HOGS 100 S
Sine encoders
- For safety-relevant applications according SIL2
- Blind hollow shaft ø16 mm or cone shaft ø17 mm (1:10)
- Up to 5000 sinewaves cycles per turn
- Low harmonic content (patented LowHarmonics technology)
- Top-quality SinCos output-signals
- Protection against inductive shaft current
- Large terminal box, turn by 180° or axial terminal cover
| Voltage supply: | 5 VDC ±10 % 7...30 VDC |
|---|---|
| Approval: | CE PL d / SIL2 approval according to EN ISO 13849-1 and EN 62061 UL approval / E256710 |
| EMC requirements: | EN 61800-3 |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 EN 61326-3-1 |
| Safety operating figures: | Service life: 20 a PFH: 1,75 10^-7 1/h |
| Function safety: | SS1, SS2, SOS, SLS, SDI, SLI according to EN 61800-5-2:2007 |
| Bandwidth: | 250 kHz (-3 dB) |
| DC offset: | ≤20 mV |
| Harmonics typ.: | -50 dB |
| Difference of SinCos amplitude: | ≤20 mV |
| Consumption w/o load: | ≤90 mA |
| Sinewave cycles per revolution: | 1024 … 5000 |
| Phase shift: | 90 ° |
| Reference signal: | Zero pulse, width 90° |
| Sensing method: | Optical |
| Output signals: | K1, K2, K0 + inverted |
| Output stages: | SinCos 1 Vpp |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
|---|---|
| Operating temperature: | -20...+85 °C |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust) |
| Connection: | Terminal box Terminal cover |
| Rotor moment of inertia: | 180 gcm² |
| Operating torque typ.: | 6 Ncm |
| Operating speed: | ≤10000 rpm (mechanical) |
| Protection DIN EN 60529: | IP 66 |
| Motor shaft tolerance: | ±0,2 mm axial (≤6000 rpm) ±0,03 mm axial (>6000 rpm) |
| Admitted shaft load: | ≤250 N axial ≤400 N radial |
| Shaft type: | ø16 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Size (flange): | ø105 mm |
| Weight approx.: | 1,8 kg |
