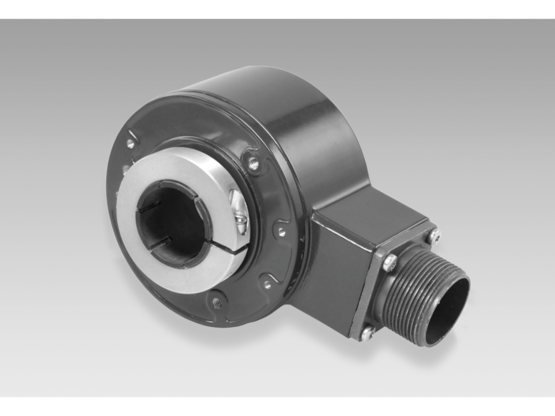

Baumer HS35P - Programmable

Baumer HS35P - Programmable

Incremental encoders

  • Robust industrial encoder up to IP 67 protection
  • Highly versatile fully programmable encoder
  • Interchangeable bore size(s) using metal inserts
  • Insulating sleeve to prevent high shaft currents from damaging bearings
  • Programmable resolution from 1...8192 ppr
  • User programmable index pulse width and location
  • Programmable from PC or standalone Baumer Programming Tools
  • Wide range voltage supply 4.75...30 VDC
  • Shock resistant up to 200 g's
Voltage supply: 4.75...30 VDC
Approval: UL approval / file no. E240061 RoHS compliant EU guideline 2011/65/EC CE
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
Programmable parameters: Output resolution in increments of one (can be different for A and B) Output level TTL/HTL Zero pulse width and position Rotational direction CW/CCW
Output stages: Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof Push-pull (HTL, 7272) Vout = Vin, short-circuit proof
Output signals: A, B, Z A, B, Z + complement, ½ cycle index gated with negative B channel
Output frequency: ≤300 kHz (TTL) ≤160 kHz (HTL)
Sensing method: Optical
Pulses per revolution: 1 … 8192
Consumption w/o load: ≤50 mA (24 VDC) ≤180 mA (5 VDC) + output load, max. 250 mA
Reverse polarity protection: Yes
Service life: Bearing: typ. 13 billion rev. (89000 h/2500 rpm)
Material: Housing: aluminium, powder-coated Shaft: stainless steel
Operating temperature: -40...+212 °F (-40...+100 °C), (fixed cable): see temperature diagram
Relative humidity: 98 % non-condensing
Resistance: DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz DIN EN 60068-2-27 Shock 200 g, 6 ms
Connection: MIL-connector, 7-pin MIL-connector, 10-pin Cable (AWG26 wire)
Rotor moment of inertia: 2,3 oz-in² (420 gcm²)
Starting torque: ≤3 in-oz (77 °F, IP 65) ≤0,02 Nm (+25 °C, IP 65)
Bearing: 52100 SAE high carbon steel (ABEC 5)
Operating speed: ≤5000 rpm (see temperature diagram)
Protection DIN EN 60529: IP 54 IP 65 IP 67
Admitted misalignment: 0.004" (0.1016 mm) radial TIR (end of shaft) 0.01" (0.254 mm) axial
Bore runout: 0.0016" (0.04 mm) TIR max.
Shaft type: ø0.375...1" (ø9.525...25.4 mm) (through hollow shaft isolated)
Size (flange): ø3.15" (ø80 mm)
Weight approx.: 23 oz. 660 g
