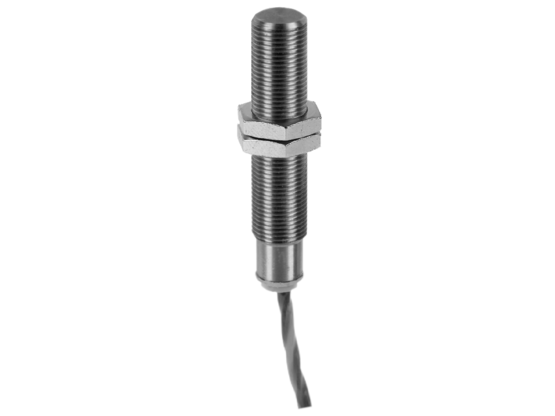

Baumer IHRM 12P1501/KS34P
Hall sensors
- flylead connector PUR M12, L=200 mm
- -25 … 75 °C
| version: | full metal |
|---|---|
| gear material: | ferromagnetic |
| gear width: | > 6 mm |
| min. gear size: | > module 1 |
| working distance max.: | <1 mm (module 1), <2,5 mm (module 3) |
| sensor type: | differential hall sensor |
| housing material: | stainless steel |
|---|---|
| dimension: | 12 mm |
| housing length: | 60 mm |
| installation aid: | keyway |
| connection types: | flylead connector PUR M12, L=200 mm |
| front of sensor durable against pressure: | 20 bar |
| operating temperature: | -25 … +75 °C |
| protection class (sensing face): | IP 68 |
| type: | cylindrical threaded |
| reverse polarity protection: | yes, Vs to GND |
| switching frequency range: | 1 … 20 kHz |
| voltage supply range +Vs: | 8 … 28 VDC |
| current consumption max. (no load): | 20 mA |
| output A: | PNP |
| output B: | none |
| output current: | < 30 mA |
| voltage drop Vd: | < 3 VDC |
| short circuit protection: | yes |
| protection class (sensor): | IP 67 |
