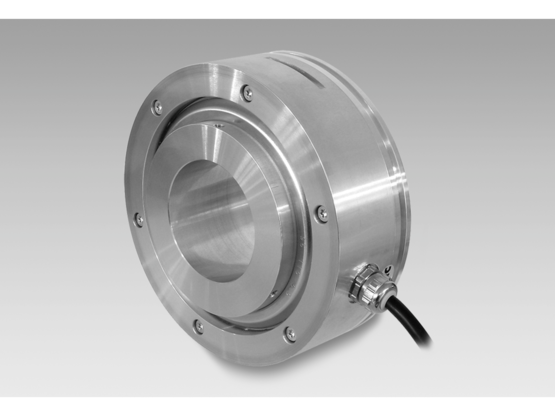

Baumer ITD 75 A 4
Encoders without bearings - incremental
- Encoder with through hollow shaft max. ø85 mm
- Max. 2500 pulses per revolution
- Optical sensing method
- Mounting hole circle ø162 mm
- TTL or HTL output signals
- Without own bearings
- Cable output radial
| Voltage supply: | 5 VDC ±5 % 8...30 VDC |
|---|---|
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Sensing method: | Optical |
| Output frequency: | ≤120 kHz |
| Reference signal: | Zero pulse, width 90° |
| Output stages: | TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof) |
| Output signals: | A, B, N + inverted |
| Pulses per revolution: | 1000 … 2500 |
| Consumption w/o load: | ≤100 mA |
| Reverse polarity protection: | Yes |
| Operating temperature: | -20...+70 °C |
|---|---|
| Relative humidity: | 90 % |
| Resistance: | DIN EN 60068-2-6 Vibration 10 g, 55-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms |
| Weight approx.: | 1500 g |
| Material: | Housing: aluminium Shaft: aluminium |
| Operating speed: | ≤3000 rpm |
| Protection DIN EN 60529: | IP 54 |
| Motor shaft tolerance: | ±0,2 mm axial ±0,2 mm radial |
| Shaft type: | ø60...85 mm (through hollow shaft) |
| Size (flange): | ø150 mm |
| Connection: | Cable 1 m |
