Baumer ITD49H00 - Sine signal

Baumer ITD49H00 - Sine signal

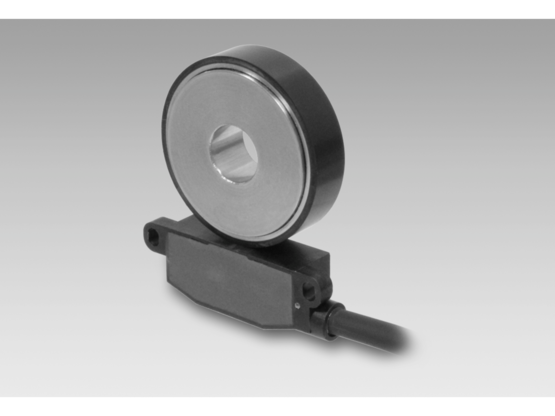

Encoders without bearings - incremental

  • Bearingless magnetic encoder
  • 64 sinewave cycles per revolution
  • Output circuit: Sine 1 Vpp
  • Fast, easy and space saving installation
  • Maintenance-free
  • High accuracy - error max. ±0.3°
  • Rotation speed max. 18000 rpm
  • High resistance to dirt and vibrations
Voltage supply: 5 VDC ±10 %
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
System accuracy: ±0.3°
Output frequency: ≤180 kHz (-3 dB)
Output stages: SinCos 1 Vpp
Output signals: A+, A-, B+, B- A+, A-, B+, B-, N+, N-
Sinewave cycles per revolution: 64
Consumption w/o load: ≤50 mA
Short-circuit proof: Yes
Reverse polarity protection: Yes
Operating temperature: -40...+100 °C (fixed cable)
Resistance: DIN EN 60068-2-6 Vibration 10 g, 55-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms
Weight approx.: 250 g
Connection: Cable 1 m
Material: Housing: plastic Shaft: stainless steel 1.4104
Axial offset: ±0,5 mm
Working distance: 0,2 … 0,5 mm (radial), optimal 0,3 mm
Operating speed: ≤18000 rpm
Protection DIN EN 60529: IP 67 (relating to sealed electronics)
Dimensions W x H x L: 12 x 16 x 48 mm
Shaft type: ø8...28 mm (through hollow shaft)
Admitted cable length: 15 m

Data sheet - Data sheet – ITD49H00 - Sine signal

  • PDF
  • 2.03 MB
Download

Data sheet - Data sheet – ITD49H00 - Sine signal

  • PDF
  • 2.02 MB
Download

Data sheet - Data sheet – ITD49H00 - Sine signal

  • PDF
  • 2.03 MB
Download

Installation and operating instructions - ITDx9

  • PDF
  • 624.79 KB
Download

3D CAD - ITD49H00: ø25 mm / STEP

  • ZIP
  • 37.13 KB
Download

Declaration of conformity - Incremental encoders ITD01-, ITD49-, ITD69-, ITD79-, ITD89- series

  • PDF
  • 230.02 KB
Download
