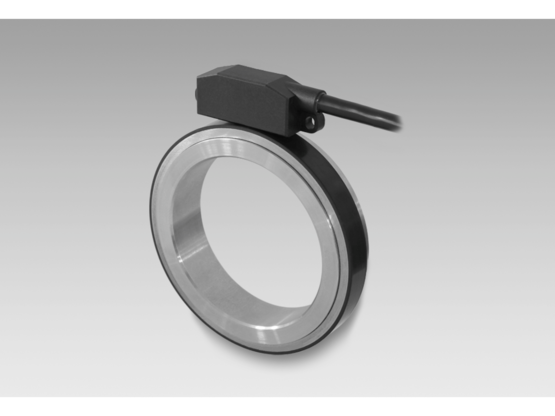

Encoders without bearings - incremental

  • Bearingless magnetic encoder
  • Max. 4096 pulses per revolution
  • Output circuits: HTL or TTL
  • Fast, easy and space saving installation
  • Maintenance-free
  • High accuracy - error max. ±0.2°
  • Rotation speed max. 10000 rpm
  • High resistance to dirt and vibrations
Voltage supply: 5 VDC ±5 % 8...26 VDC
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
System accuracy: ±0.2°
Output frequency: ≤300 kHz (TTL) ≤160 kHz (HTL)
Output current: ≤30 mA
Output stages: TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof)
Output signals: A 90° B + inverted A 90° B, N + inverted
Reverse polarity protection: Yes
Short-circuit proof: Yes
Consumption w/o load: ≤50 mA
Pulses per revolution: 128 … 4096
Interpolation: 1‑fold (single) 2‑fold 4‑fold 8‑fold 16‑fold 32‑fold
Connection: Cable 1 m
Weight approx.: 390 g
Resistance: DIN EN 60068-2-6 Vibration 10 g, 55-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms
Operating temperature: -40...+100 °C (fixed cable)
Material: Housing: plastic Shaft: stainless steel
Axial offset: ±0,5 mm
Working distance: 0,2 … 0,5 mm (radial), optimal 0,3 mm
Operating speed: ≤10000 rpm
Protection DIN EN 60529: IP 67 (relating to sealed electronics)
Dimensions W x H x L: 12 x 16 x 48 mm
Shaft type: ø40...65 mm (through hollow shaft)
Admitted cable length: 15 m
